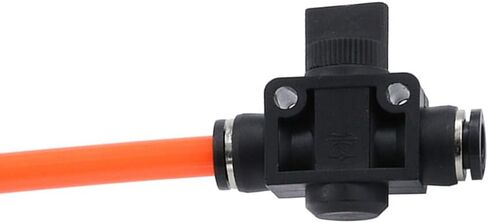

Beduan Pneumatic Air Flow Control Hand Valve
Size: 1/4" OD
Material: Plastic
Working Pressure: 0-1MPa | 0-145psi
Working Temperature: 0-60°C | 32～140°F

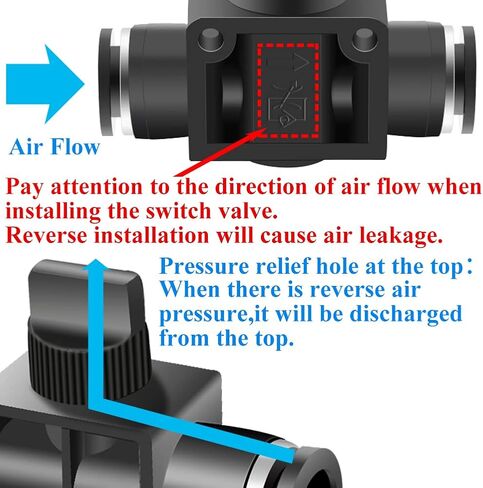

Installation Method:
1 . After the pipe is cut off, remove the burr and insert one end of the pipe into the socket of the joint (must be inserted into the bottom) to achieve a firm connection and sealing effect.
2 . After repeatedly pulling out the pipe. The worn part of the end should be cut off. Continue to use after leveling.
3. When disassembling the pipe, use your thumb to press the connector ferrule in and gently pull out the pipe.
4. After installation, you just need to rotate the joint body to adjust the direction of the pipe.
Beduan Pneumatic Fittings are a compact one piece push-to-connect fitting.All items in the Beduan Pneumatic composite range are silicone free.
The Stainless steel gripping ring ensures excellent tube retention while the D seal within the fitting provides a positive seal on the O.D. of the tube,in both static and dynamic positions, due to an optimized design of the fitting cavity.
