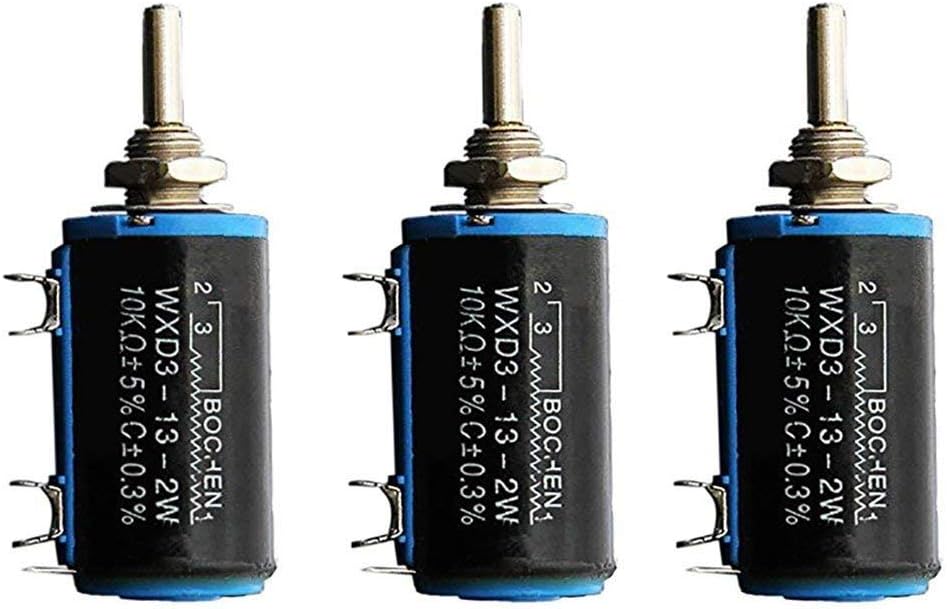

Xiaoyztan 3 Pcs WXD3-13-2W 10K Ohm Multi Turn Wirewound Potentiometer Pot Precision Linear Potentiometer

KWD 3.500
KWD 4
Brand
Xiaoyztan
Weight
69 g
– 1 +

Special Features

  • PACKAGE - 3 x Multi-Turn Wirewound Potentiometer Pot.
  • PARAMETER - Multi-turn, 2W power rating, 10k Ohm resistance, and 5%resistance tolerance.
  • ADJUSTABLE - The resistance can be changed by a mechanical angle of a plurality of rotations, can make precise adjustments.
  • APPLICATION - The wirewound potentiometer is widely used for the adjustment of timer, speed, and temperature of various devices.
  • DIFFERENCE NOTICE - Please allow 1-3mm measurement difference due to manual measurement and a certain degree of color difference caused by camera lenses, different phone screens, and different monitors.

Description

Specifications
Power Rating: 2W(55°C) / 0W(100°C)
Max Operating Voltage: 160V
Resistance range: 0-10kω
Resistance Tolerance: ±5%
Angle of rotation: 3600°±20°
Torque: 3.5~100M N·m
Vibration: vibration frequency is 10 ~ 500HZ , acceleration 49m/s2
Collision : the frequency of 40 to 80 beats / min , acceleration 147m/s2
Centrifugal : acceleration 147m/s2
Shaft diameter & Length: 4 x 12 mm / 0. 157" x 0. 47"
Threaded collar diameter: 7. 8mm / 0. 31"
Overall Size: 20. 5 x 58 mm / 0. 8" x 2. 3"(Diameter*length)
Dielectric strength: to withstand 750V (50HZ AC RMS ) for 1 minute , without breakdown , flying fox phenomenon
Item Weight: 0.85ounce / piece
