Specifications

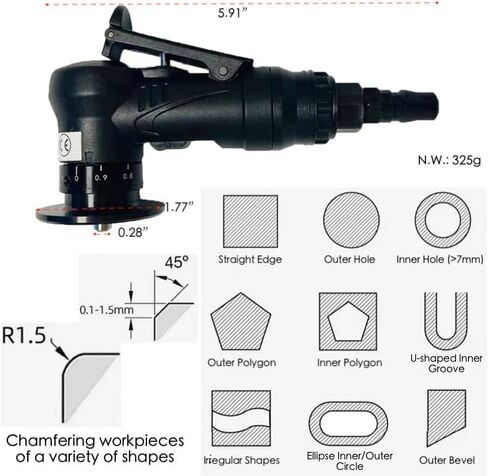

- Chamfering Range: 0-0.9mm (0-0.5mm recommended)

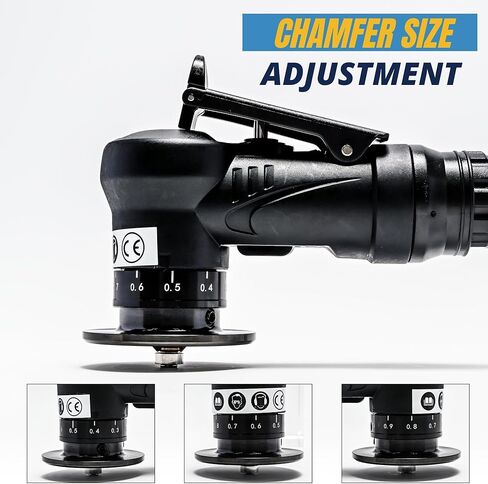

- Chamfering Capacity: C0.1-C2
- Depth: 0.1-0.9mm
- Chamfering Hole: ≧ Φ8mm
- Thickness of Chamfering Metal: >3mm
- Idle Speed: 30,000RPM
- Air Consumption: 0.4/min
- Air Inlet: 1/4 in
Pressure: 0.4-0.6MPA

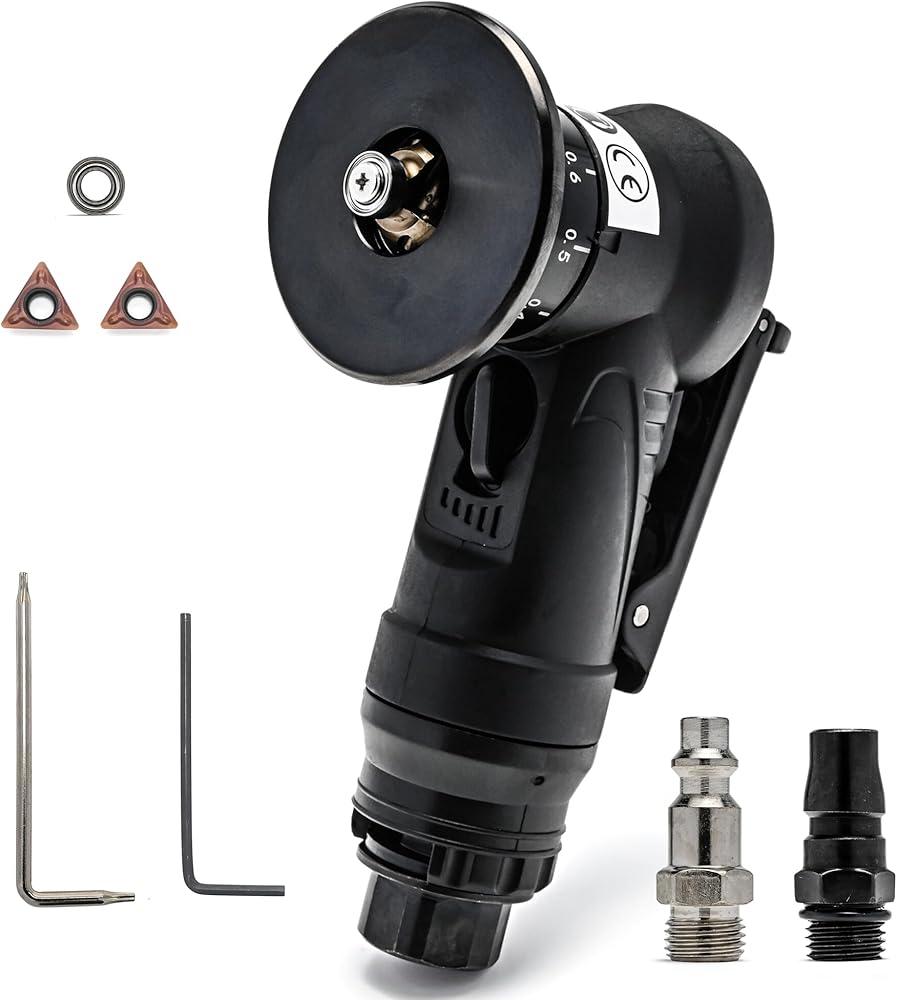

Package Included
- 1 x 45° mini chamfering machine kit
NOTICE TO USE
1. Before using the new machine and after continuous use for around 3 hours, please inject pneumatic tool oil about 4C.C into the air inlet.
2. After injecting the pneumatic tool oil, wait about 10 seconds for the internal parts of the grinder be lubricated.
3. The output of the air compressor (air pump) is about 6-8kg. Generally, most of the compressed gas of a traditional air compressor contains water, and its piston brings out a small amount of the lubricating oil. If the oil-water separator is not used, water, oil and gas will enter the inside of the machine and will stay for a long time. The occurrence of adhesion slows down the rotation of the machine, resulting in insufficient speed and torque. In this way, inject the pneumatic tool oil into the air inlet, then the machine can work normally after idling for about 10s.
