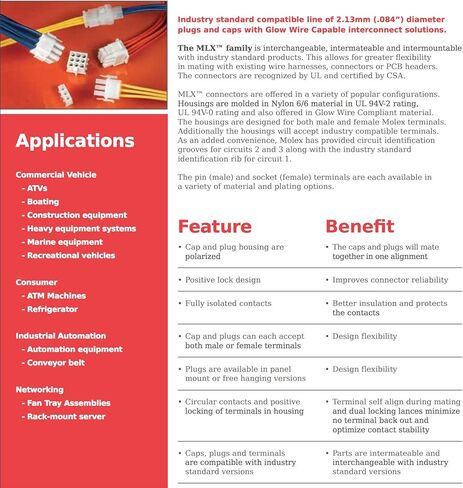

Overview An industry compatible line of 2.13mm diameter plug and cap power connections, interchangeable, intermateable and intermountable with industry standard products.
The MLX Series is interchangeable, intermateable and intermountable with industry standard products. This allows greater flexibility in mating with existing wire harnesses, connectors or PCB headers. The connectors are recognized by UL and certified by CSA.

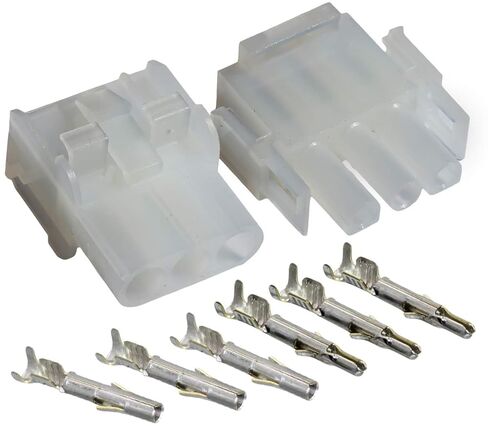

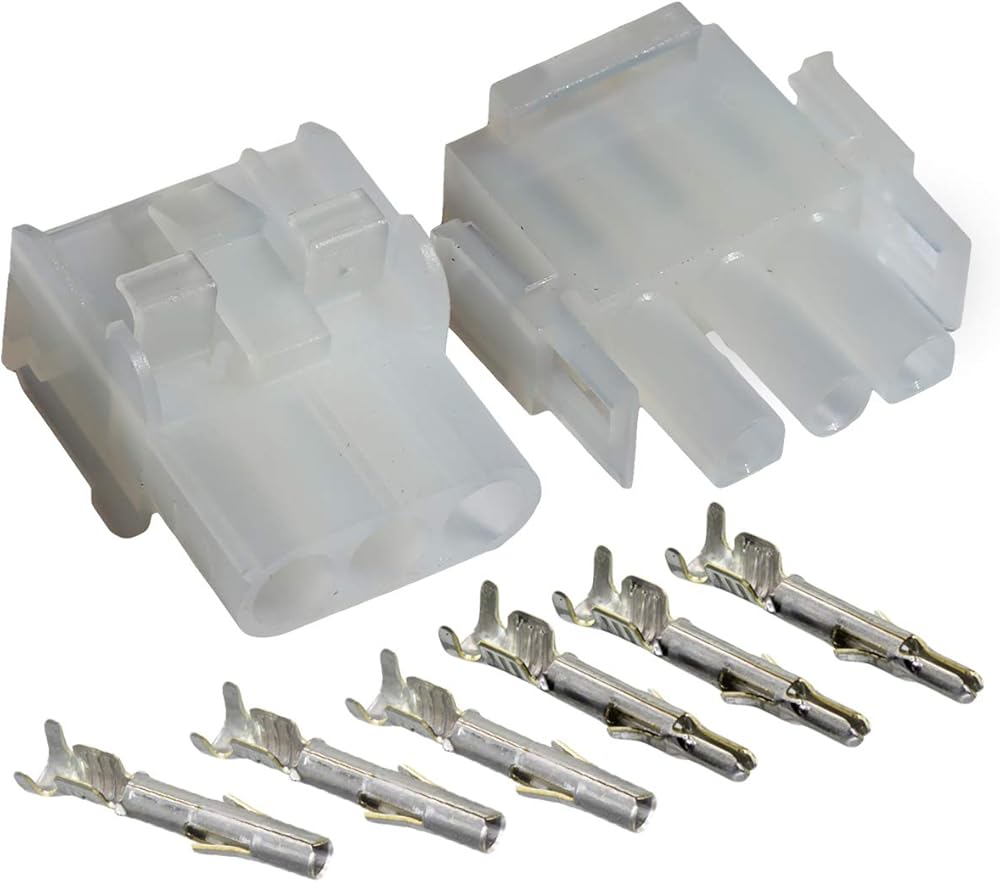

The housings are designed for both male and female Molex terminals. Additionally the housings will accept industry compatible terminals. As an added convenience, Molex has provided circuit identification grooves for circuits two and three along with the industry standard identification rib for circuit one.

20AMPS Per Contact
Lock to Mate Part
Current – Maximum per contact 20A
Color - Resin Natural
Flammability 94V-2
Mating Interface 6.35mm
Temperature Range - Operating -55°C to +105°C
Terminal Wired Applicable wires: 14-20 AWG
Low-Halogen (Pins & Socket)
