Description:

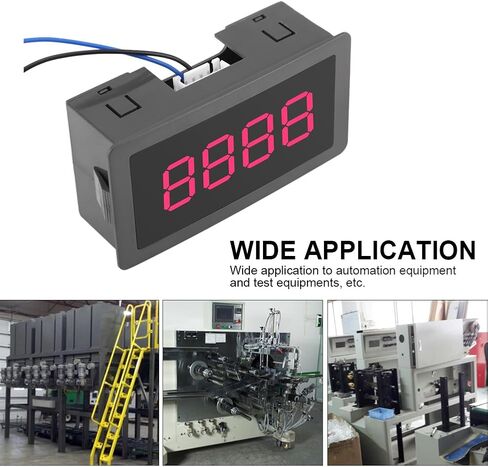

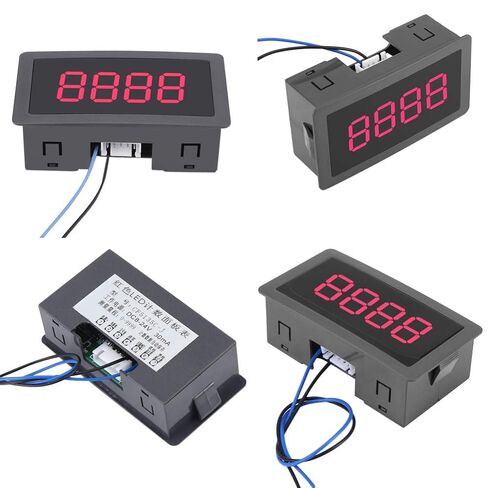

This digital display counter has bright LED light, high accuracy, good stability, and easy installation.
The meter retains the number automatically when power off.

Specifications:
Working voltage: DC 8-24V
DC current: 30mA
Counting: Plus or minus
Counting range: 0-9999
Digit number: 4 digit
Color(Optional): Blue, Green, Red
Size: Approx. 8 x 4 x 2.5cm / 3.1 x 1.5 x 0.9inch
Weight: 48g

Wire diagram:
Terminal 1: Positive
Terminal 2: Ground
Terminal 3: Ground
Terminal 4: Clear
Terminal 5: Switch Pulse
Terminal 6: Blue wire for increasing
Terminal 7: Black wire for decreasing
Note: The 5-Pin cable is used to connect with the counter.

Packaging Include:
1 x Digital Display Counter
1 x 5-pin Cable
