R8 FMB27 7/16-20UNF Shank Face End Mill Arbor and 3.15"/80mm Cutting Diameter 6-Flute 400R-80-27-6T CNC Face End Milling Shell Cutter with 10Pcs APMT1604 Carbide Inserts and T15 Wrench

KWD 25.500
Brand
BestParts
Category
Cutting Tools
Weight
1.8 kg
– 1 +

Special Features

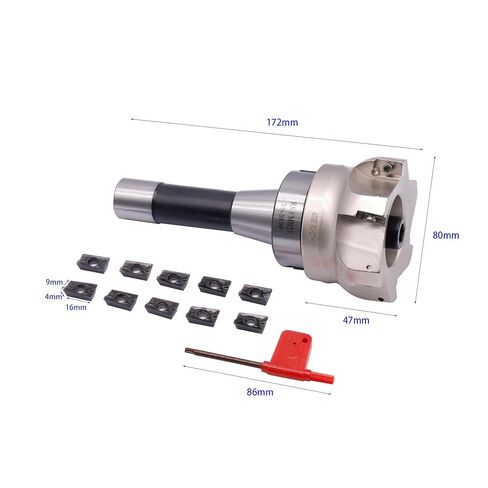

  • Set includes: 1 x R8 FMB22 Arbor, 1 x 400R-80-27-6T Cutter, 1 x T15 Wrench, 10 x APMT1604 Carbide Inserts as pictured.
  • Function: Machining planes, grooves, and cutting off workpieces on milling machines. Milling speed and processing efficiency are high, and the surface quality of the processing is also good. It is possible to add T parts with hard skin and hardened layers, which has obvious advantages in improving product quality and processing efficiency.
  • High Quality: Made of alloy steel with high hardness and high strength to ensure long service life, which can be used on CNC machines, suitable for plate cutting, hardness insert used for steel material.
  • Good Performance: Milling rotary tool is screw locking, the chip large space, good chip removal, edge can fit a variety of materials. Body made of fine quality steel, good permeability,sturdiness and durability, resistance to multiple impacts,fine durability. Smooth surface, comfortable feeling, nice appearance.
  • Widely Application: This shank face mill arbor set is designed for shoulder milling, face milling and slotting, mainly used for CNC machining centers, CNC engraving machines. It can also be installed on an ordinary milling machine to process some harder and less complex heat-treated materials.

Description

Specification:
Used for plate cutting, carbide insert used for steel meterial.
Body made of steel, durable

Carbide Insert
Material: cemented carbide
Model: APMT1604

Face Mill Arbor
Model: R8-FMB27
Bore Diaameter: 1.06In/27mm
Draw Bar Threads: 7/16-20

Milling Cutter
Model: 400R-80-27-6T
Flutes: 6-Flute
Cutting Diameter: 3.15in/80mm

Features:
90° indexable milling cutter, matching with standard APMT1604 insert
Made of alloy steel with high hardness and strength to ensure long work life
High vibration-absorbing performance, improve the surface finish of the workpiece
Set including R8 face mill arbor with 27mm bore for holding milling cutter
Set including 10pcs APMT1604 inserts, great for shoulder milling, face milling and slotting, can fit a variety of materials

Package included:
1 x R8 FMB22 Arbor
1 x BAP400R 80-27-6T
1 x T15 Wrench
10 x APMT1604 Carbide Inserts as pictured
