Product Specifications:
SSR-100AA
Current:100A.
Resistive load using current:25A.
Resistive load power: 5500 watts.
Inductive load using current: 7.5A.
Inductive load: 1650 watts.
Choose products with different specifications according to different loads (factor: resistive load is 2 times, inductive load is 6 times).
for example:
Example 1: A heater with a rated current of 15A, the heater is a resistive load, so it should be 15Ax2=30A, and a 40A solid state relay should be purchased.
Example 2: A motor with a rated current of 15A, the motor is an inductive load, then it should be 15Ax6=90A, and a 100A solid state relay should be purchased.

Product parameters:

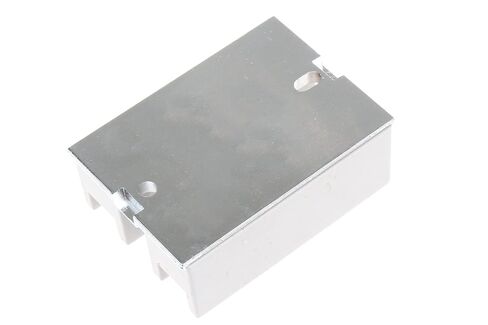

Product Name: NOYITO Single Phase Solid State Relay / AC Control AC.
Input control voltage: AC 80 - 250V.
Control terminal load voltage: AC 24 - 380V.
Trigger current: 3-35 mA.
On-state step-down ≤1.6V.
On-off time≤10ms.
Operating ambient temperature: -22°F - +160°F.
Product weight: 95 grams.
Product size: 62x45x24mm (LWH).
Mounting hole diameter: 4.8mm.
Mounting hole spacing: 48mm.

Package Included:
1pcs NOYITO Single Phase Solid State Relay
