Specification:

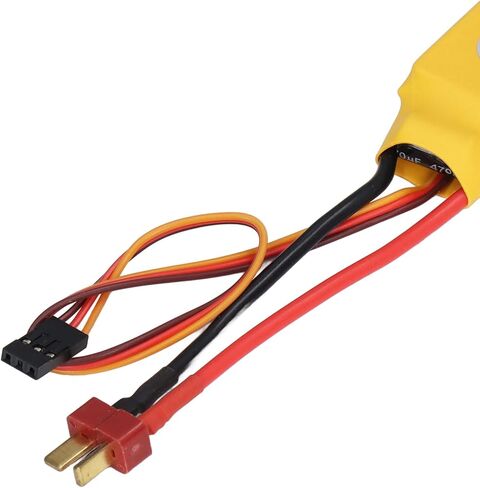

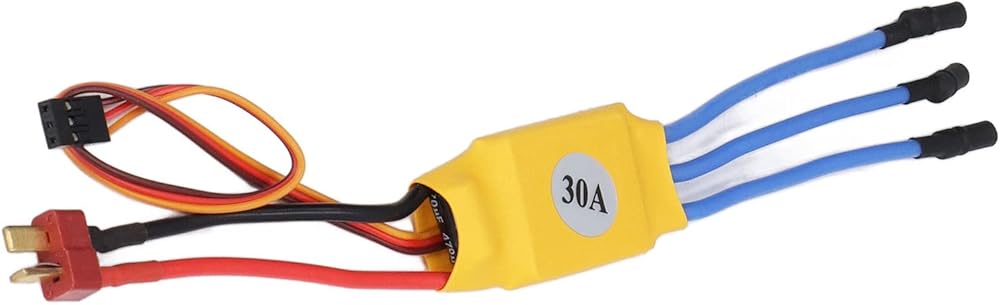

Item Type: Brushless Motor ESC
Material: PCB
Basic Parameters:
Voltage Range: 4-16V
Number of Batteries: 4-12NIMH
2-3LIPO (4LIPO does not allow BEC output)
BEC Output:
Continuous 2A (instant 3A)
2LIPO 4-5 Micro Servo
3LIPO 3-4 Micro Servo

How to Use:
1. Extreme Use:Continuous current 30A, instant 35A, 40A for 10 seconds.2. Protective Function:Automatically select 2‑3LIPO, the protection voltage is 6V and 9V;Automatic select NIMH, the protection voltage of each section is 0.8V;Safe start, if the accelerator position is not correct, it is forbidden to start;Temperature protection, stop when 110℃ surface temperature;Out of control protection, stop after 1 second without .3. Performance Description:Upper Speed Limit: Up to 300,000rpm for 2 pole internal rotation, 50,000rpm for 12 pole external rotation, and 42,000rpm for 14 pole external rotation.8KHz PWM control, use speed control curve.Auto throttle adaptation, suitable for more remote control devices.Using BEC, MCU separates the power supply, the work is more stable.4. Setting Method:1. Turn on the transmitter and push the throttle (for FUTABA series transmitters need to select REV for the throttle channel).2. Connect the receiver and motor.3. Turn on the power supply of the ESC, and if the transmitter is normal, it will have the following sound: (If the sound ends with a long di sound and there is no more sound, then check the reverse setting of the throttle channel of the transmitter.)B B means LIPO automatic protectionBB BB means NIMH NICD automatic protectionBBB BBB means brake selection

PackageList:
1 xBrushless Motor ESC
