Note：
1. This HDMI to SDI converter only supports SDI signal, does not support RF, CVBS, AHD, TVI, CVI.
2. This HDMI in SDI out converter can not support 4k HDMI input.
3. Only works one direction, can not be reversed used as SDI to HDMI.

HDMI to SDI Converter--Audio Embedder & Auto Format Detection

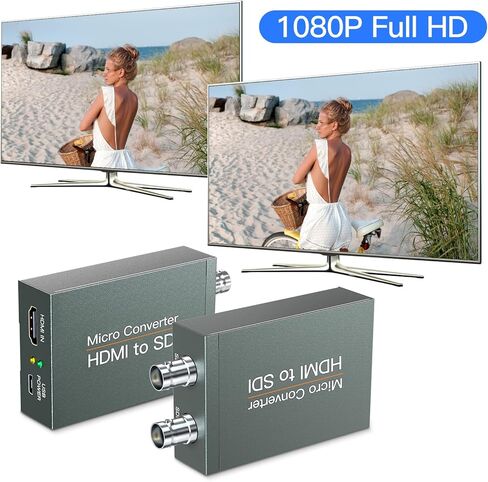

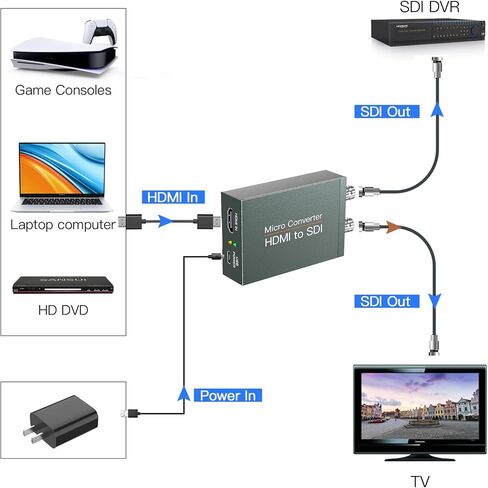

This HDMI to SDI Converter converts HDMI signal into SDI signals. With 2 ports SDI output, it allows you to display HDMI signal on 2 SDI displays simultaneously.

Specifications:
1. Input Port: HDMI
2. Output Port: 2 x SDI(BNC male connectors)
3. HDMI Input Resolutions: 480P, 576P,720P@50/ 60Hz, 1080p@24/ 25/ 30/ 50/ 60Hz, 800 x 600P@60Hz,1024 x 768P@60Hz 1280 x 800P@60Hz,1280 x 960P@60Hz,1360 x 768P@60Hz 1400 x 1050P@60Hz,1440 x 900P@60Hz,1600 x 1200P@60Hz, 1680 x 1050P@60Hz
4. SDI Output Resolutions: 720P@50/ 60Hz, 1080P@24/ 25/ 30/ 50/ 60Hz(SD-SDI/ HD-SDI/ 3G-SDI）
5 SDI data transfer rates: 270Mb/s, 1.485Gb/s, 2.97Gb/s
6. Dimension: 3.3 x 2.2 x 0.9inces/ 83 x 55 x 24mm
7. Weight: 165g

Features:
1. Supports 2 ports SDI output simultaneously
2. Embedded audio and image synchronization output
3. Supports HDMI 1.3, 1920*1080
4. Built-in ESD protection circuitry can effectively prevent electrostatic damage
5. Auto detection of SD or HD, 3G-SDI

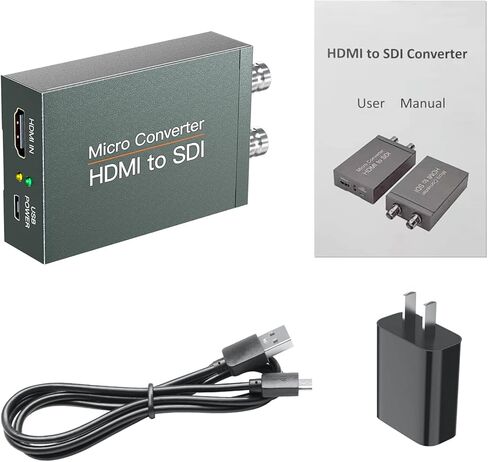

Packing List:
1 x HDMI to SDI Converter
1 x Power Adapter
1 x User Manual
