Note:
1. This SDI to HDMI converter only works one direction, can not be used as HDMI to SDI.
2. Only Supports SDI signal, does not support RF, CVBS, AHD, TVI, CVI.
3. Maximum resolution supports Full HD 1080p, not support 4K.
4. When using ATEM with this device, please forcibly set the resolution of ATEM to 720P@60Hz.

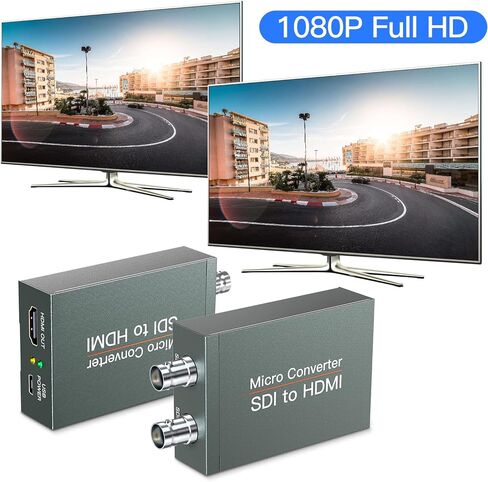

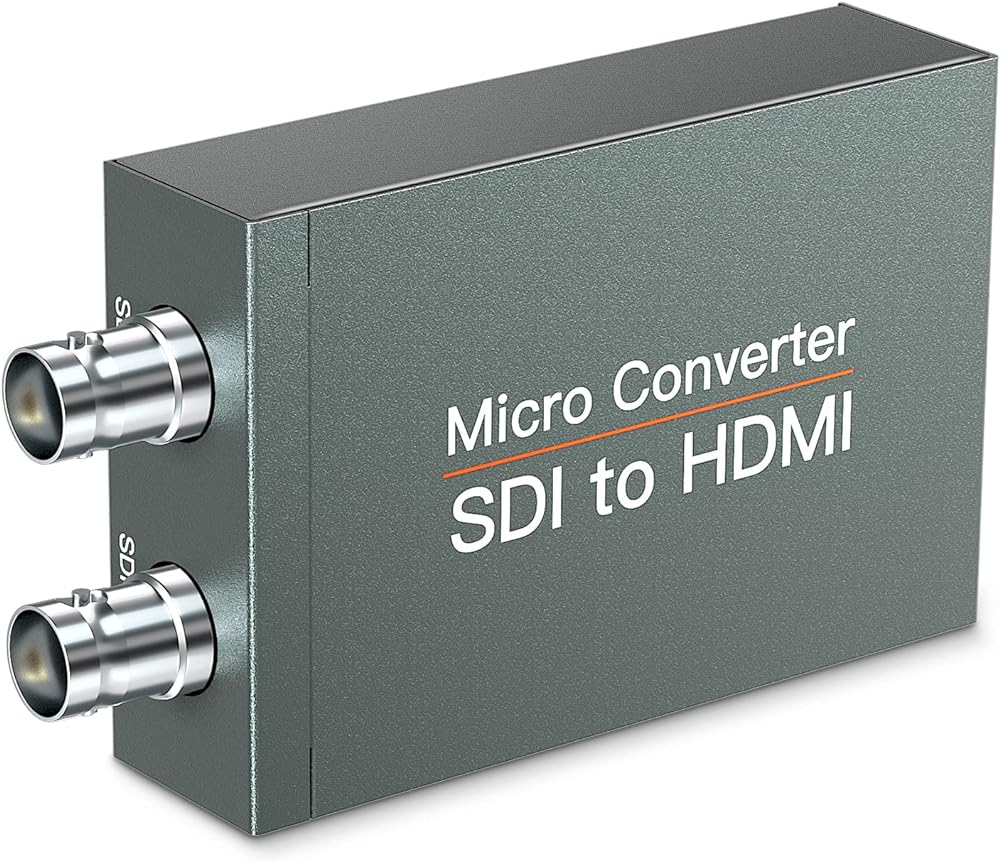

This SDI to HDMI converter converts 1080P HD-SDI/ 3G-SDI/ SD-SDI signal into HDMI to display on HDTV, monitor or projector. It's widely used in broadcast television, outdoor large-screen display system, multimedia conference system, command and control center, traffic intelligence and machine tool.

Specification:
1. Input: 1 x BNC (SDI/ HD-SDI/ 3G-SDI)

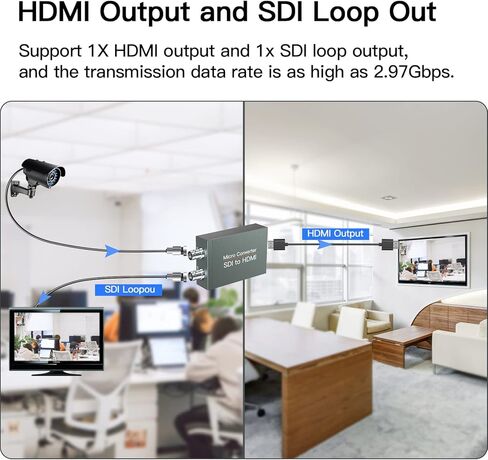

2. Output: 1 x HDMI Type A out + 1 x SDI loop output
3. Input audio signal: SDI embedded 4. SDI input resolutions: 480i, 576i, 720P@30Hz/ 50Hz/ 60Hz, 1080i@50Hz/6 0Hz, 1080p@24Hz/ 25Hz/ 30Hz/ 50Hz/ 60Hz
5. HDMI Output resolutions: 720P@ 50/ 60Hz, 1080p@50/ 60Hz
6. SDI data rates: 270Mb/s, 1.485 Gbps, 2.97Gbps
7. Supports SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C
8. Power Supply: USB DC 5V/1A
9. One way SDI output, with the Re-clock function, can support multiple cascaded

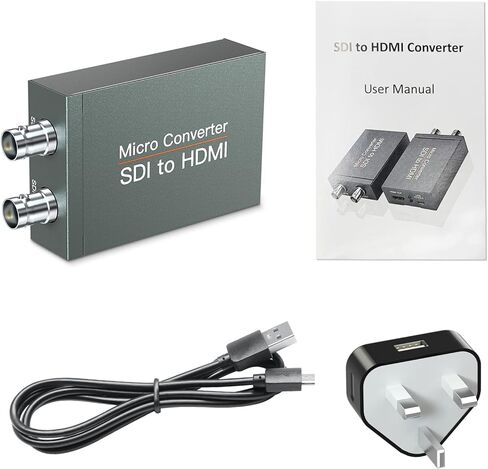

Package List:
1 x SDI to HDMI Converter
1 x Power Adapter
1 x User Manual
