Note:
1. This CVI/ TVI/ AHD/ CVBS to HDMI converter only works one direction, can not be used as HDMI to TVI/ CVI/ AHD.
2. Only Supports CVI/ TVI/ AHD/ CVBS signals via BNC male connector, does not support RF, SDI.
3. Maximum HDMI output resolution supports up to 1080p, not support 4K HDMI output.

TVI/ CVI/ AHD/ CVBS to HDMI Converter

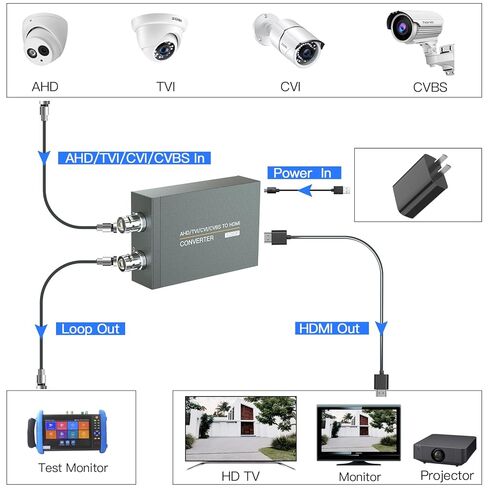

This TVI/ CVI/ AHD/ CVBS to HDMI Converter converts TVI, CVI, AHD, CVBS signals into 720P/ 1080P HDMI signal. It's widely used in broadcast television, outdoor large-screen display system, multimedia conference system, command and control center, traffic intelligence and machine tool.

Feature:
1. With CVI/ TVI/ AHD loop out for local display
2. Auto recognition resolution
3. Long Transmission Distance. 500-700 meters over coax cable; Different resolution, different transmission distance.

Specification:
1. Input: 1 x BNC (TVI/ CVI/ AHD/ CVBS)
2. Output: 1 x HDMI Type A + 1 x BNC loop output
3. TVI/ CVI/ AHD input resolutions:
=>720P, 1080P, 3MP, 4MP, 5MP, 8MP TVI/ AHD signal input
=>720P, 1080P, 4MP, 8MP CVI input
=>Standard resolution CVBS signal input
4. HDMI Output resolutions: 720P@50/ 60Hz, 1080p@50/ 60Hz
5. Power Supply: USB DC 5V/1A

Package List:
1 x CVI/ TVI/ AHD/ CVBS to HDMI converter
1 x Power Adapter
1 x User Manual
