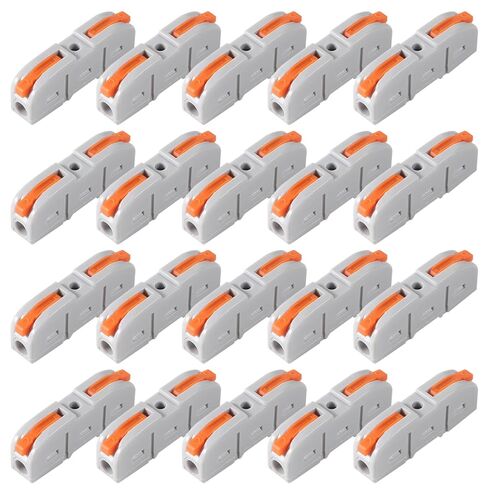

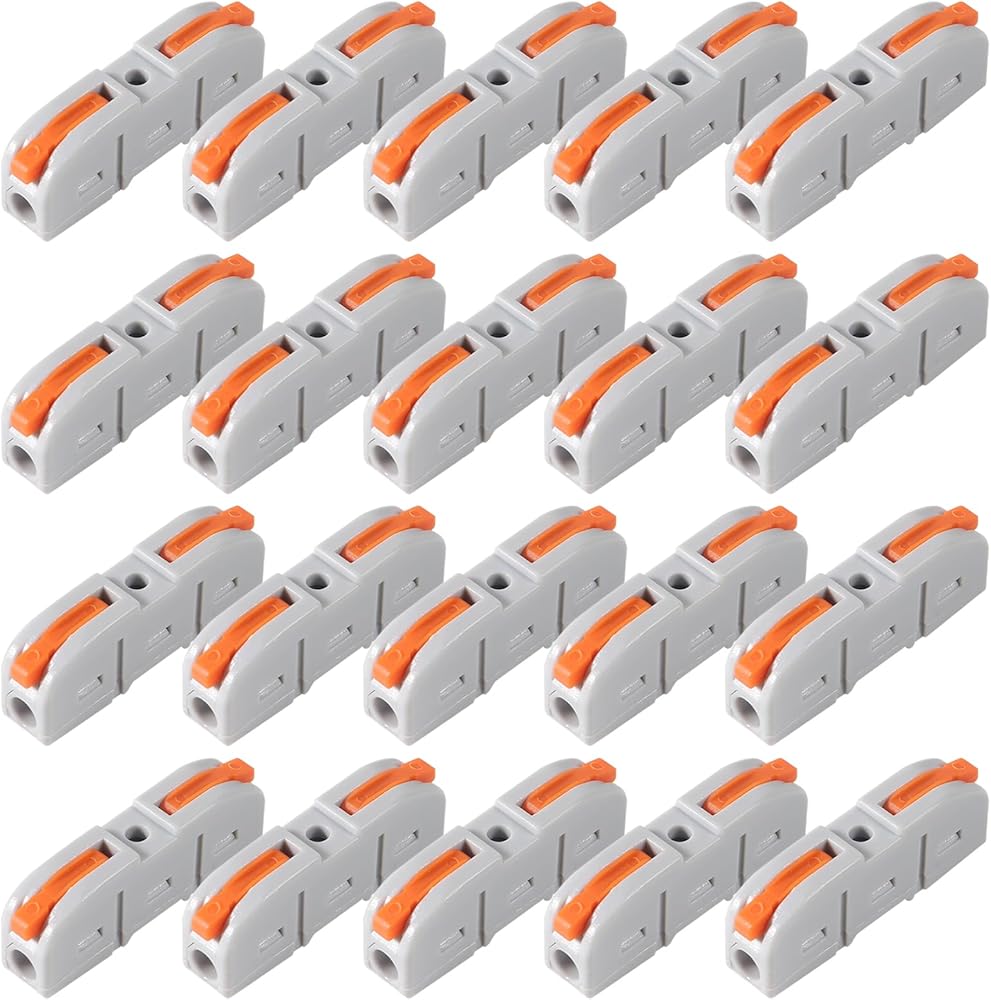

20Pcs 1 in 1 out

KWD 3
Brand
AITRIP
Weight
101 g
Color20Pcs 1 in 1 out
– 1 +

Special Features

  • AITRIP wire splicing connector is made from insulated material, which is flame-retardant, corrosion resistance, aging resistance, high pressure resistance, long service life. It can prevent electrical leakage, safe and reliable.
  • Suitable for hard wire 0.08-4.0mm²/ AWG28-12, soft wire 0.08-2.5mm²/AWG28-14.
  • Screw fixation: M3 screw mounting hole. There are screw holes on both sides of fast connector, which is convenient for fixing the wiring, simple but efficient.
  • Made of nylon PA66, which has flame retardant and high temperature resistance, reducing potential safety hazards.
  • Package: 10 Pcs Lever Wire Connectors, Quick Wiring Cable Connector Push-in Conductor Terminal Block (2 in 4 Out)

Description

Specifications:
Rated voltage: 400V
Rated current: 32A
Applicable wire: 0.08-2.5（4）mm² /AWG 28 -14（12）
Material of conductive part: electrolytic copper tin plating
Clamping spring: high-alloy nickel-chromium steel
Shell: flame retardant plastic
Max Operating Temperature: -40°C ~ 105°C

Features:
▸Push-Wire Structure, Plug and play quick connecting.
▸Low installed cost and safe operation.
▸The operating lever avoids the need for tools.
▸Corrosion resistance, high-temperature resistance and aging resistance.
▸Reusable conductor compact wire connector.

Package Include: 10 Pcs
