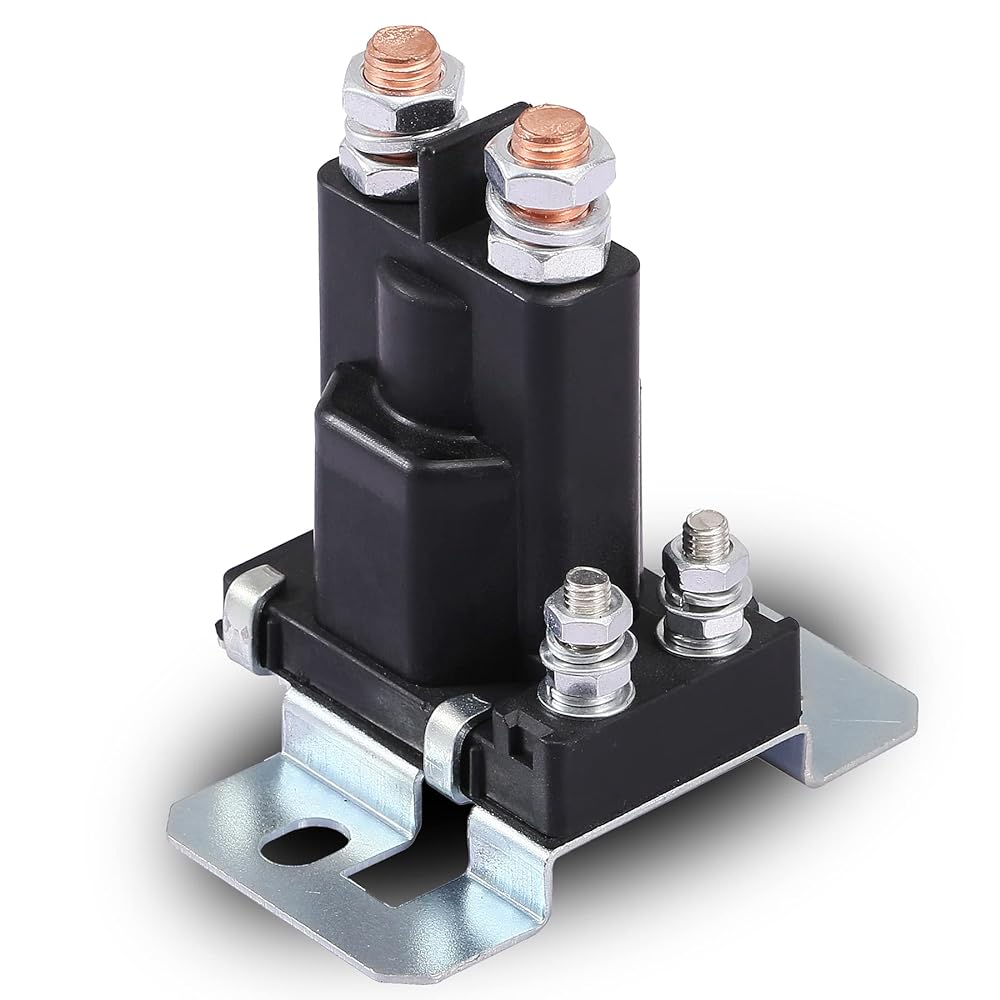

Universal 12VDC Applications,(such as fit for honda pioneer 1000-5,Toro Timecutter zero turn mower; house batteries in class B motorhome,Class C RV, 4 wheeler)，high current relays are the most reliable and efficient way to add secondary batteries to your system,Prevents primary battery discharge,Extends battery life.

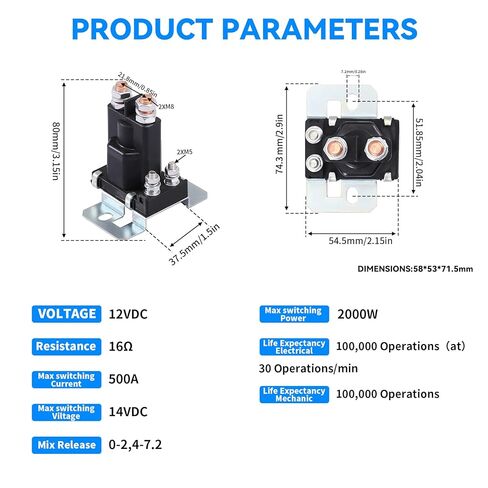

SPEC:Double Batteries Isolator Control On/Off Relay Switch; constant Amps: 80 ,peak:150A,Surge Max Amps:500（- about 6-1/2 watts）Voltage: 12VDC; 100,000 mechanical cycle life./Normally Open With Attaching Hardware, Copper Contact
Max Switching Currecnt could pass 500A at 5ms ,and Max Switching power could be 2000W .Replace: White Rodgers: 120-105751, 120-105751-6, 120-901S1,120-107112/ Cummins 3916301 3916302/Properly installed the relays separates the main battery from the auxiliary battery when the engine is off. When on, both batteries are charged.
Note: If the Battery Isolator Relay device is mounted near the engine, or in the sun, it could be warm from the environment. Are all the connections tight， the load near the maximum 80-amps， the coil seeing more than 12-volts， the wires involved in the 80-amp circuit gauged large enough to handle the current，exceeding it or maintaining it constantly might generate some heat.
Professional after-sales:We sell professional parts ，and provide technical support. If you have any problems or dissatisfaction after receiving the products, We will solve the problem as soon as possible.6 Month Warranty, Free Return and Exchange.
