Servo Motor Tester Kit SG90 9g Micro Servo 180 Degree + RC Micro Servo Tester Controller with Power Supply Case 4AA Battery Holder Case with JR Connector

KWD 5.500

Brand
Wishiot
Weight
41 g
1 +

Special Features

  • 1. Package inculeds: SG90 9g servo motor + servo tester controller + 6V 4 AA battery holder
  • 2. SG90 9g Servo: 180 degree. SG90 is a high quality,low-cost servo for all your mechatronic needs
  • 3.Three modes of servo tester: Support manual / automatic / and neutral three modes, can test a variety of models of servo and micro servo
  • 4.High quality battery box: Made with high quality materials. Each holder holds 4pcs AA batteries. With JR connector for easy connection
  • 5. Please feel free to ask us any questions and we will do our best to help you solve the problem.

Description

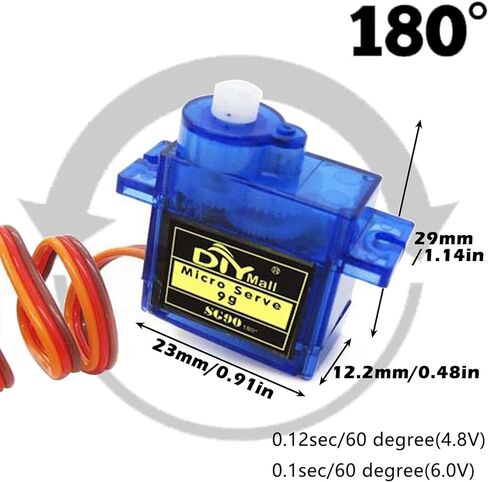

SG90 9g Servo 180 degree for RC Airplane

Description:
SG90 is a high quality,low-cost servo for all your mechatronic needs. It comes with a 3-pin power and control cable, mounting hardware.

Speed: Standard speed is 120 degrees, the maximum speed is 180 degrees
Operating Voltage : 4.8~6.0V
Currenct: 0.19A@5V,0.24A@6V
Operating Speed : 0.12sec/60 degree(4.8V)~0.1sec/60 degree(6.0V)
Torque : 1.6kg/cm(4.8V)
Dead Band Width : 5usec
Temperature Range : -30~+60℃
Cable Length : 25cm
Servo Type : Analog Servo
Brand Model : SG90
size:23X12.2X29MM

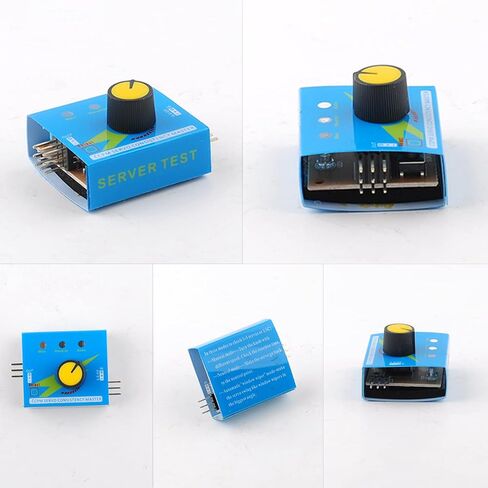

3CH Digital Multi Servo Tester ECS RC Consistency CCMP Master Speed Controler Checker

Description:
Output: ≤15mA (5.0)
Input: DC 4.2-6.0v
Output signal: 1.5ms ± 0.5ms
Size: 46 * 32 * 17MM
Weight: 8g

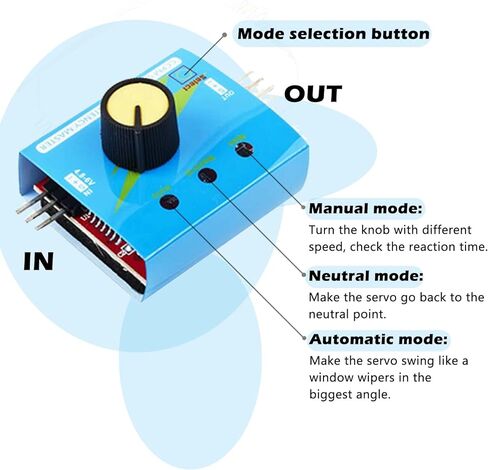

Adjustment modes: manual, automatic, and the median.
Features: can be easily detected and set the dummy bit server, jitter and median.
Can be connected to two servos or ESC; MCU control, good stability, high accuracy. Turn the knob, steering can be detected.
If you connect the electronic governor (brush or brushless available), you can get rid of the remote control device for manual control, for testing tone.
Speed ​​or motor performance is very practical, no longer cumbersome connecting the remote control and the receiver. It is equivalent to a "hand Dynamic Receiver "feature, playing rudder knob analog transmitters.

Note: This tester can test more than 55 grams of servos

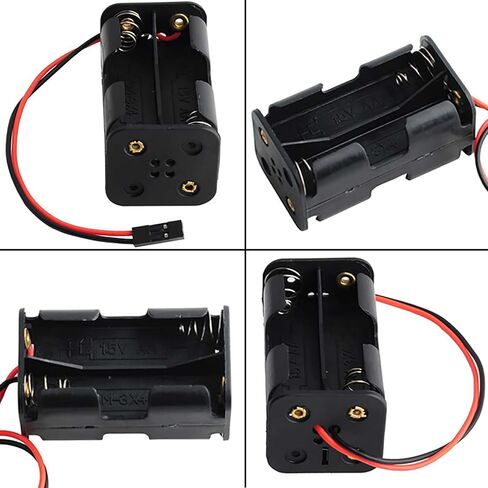

4 Cell AA Battery Holder Case with JR Connector Receiver Battery Pack

Description:
Each holder holds 4pcs AA batteries
Voltage: 6V
With JR connector
Works great for RC, such as servo tester

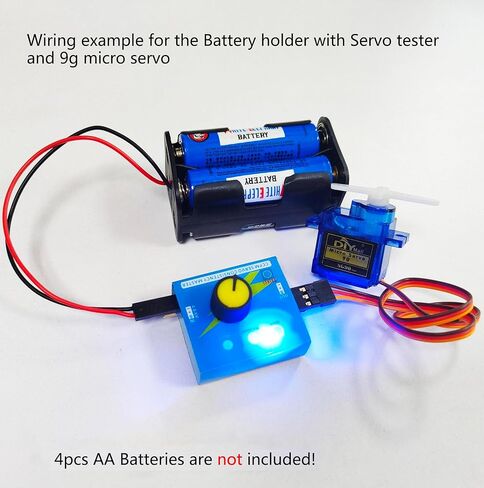

Package Included:
1 X SG90 Servo
1 X Servo Tester
1 X 4 Cell AA Battery Holder
