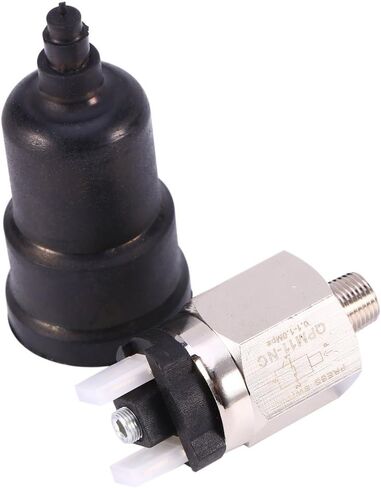

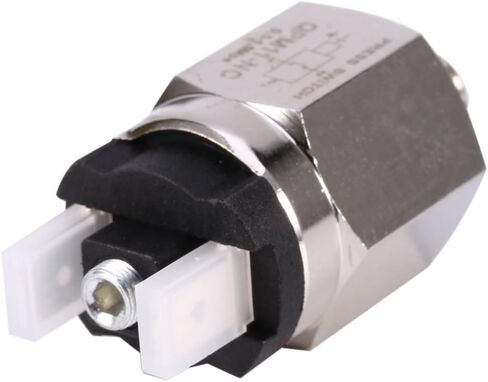

QPM11-NC Diaphragm Type Pressure Switch,1/8" Thread Air Pressure Switch,0.1-1.0 Mpa Adjustable Pneumatic Controller Valve, Wire External Thread Nozzle
Features:
Model:QPM11-NC
Use medium: air
Working Form: Pressure Adjustable
Installation Connection: external thread
Pressure range: 0.1-1.0 MPA
Work tempertature range: -5-60 degree
Connection: 1/8"
Work voltage: 220V/AC,48V/AC,DC
Current: 0.5A
Maximum power: 24VA, 100VA
Insulation voltage: 500V, 1500V
Maximum working current: 500mA
Max pulse count: 200T/min
Service life: 100 millions cycles
Protection class: IP54

Package Included:
1 x Diaphragm type pressure switch

Note:
Adjust the pressure of the size, please screw the two
terminals in the middle of the Hex.

Package include:
1 x Pressure Switch
