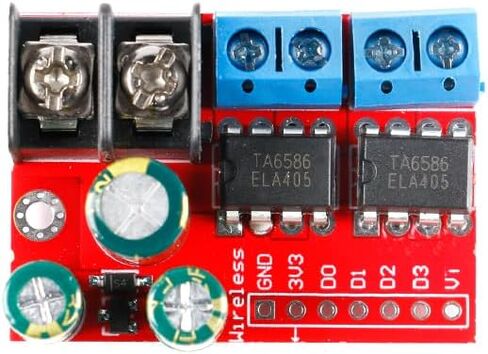

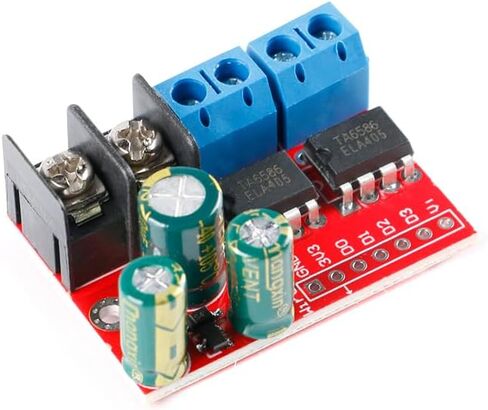

2Pcs 5A Dual DC Motor Drive Controller Module Stepper Motor Double H Bridge PWM Speed Control Relay Light Bar Remote Control 3V-14V ZK-5AD

KWD 4.500
Brand
EC Buying
Weight
34 g
– 1 +

Special Features

  • Not only can it be used for remote control motors, but it can also DIY remote control relays or remote control light strips, allowing for simultaneous control of four circuits
  • Can independently control two motors, each with an output current of 5A and a peak of 9A, with a standby current of only 10uA
  • Wide power supply range of 3-14V, signal power supply range of 2.2-6V, 3.3V and 5V levels can meet the requirements
  • The board provides a 3.3V 100ma power supply to meet the power needs of your control system, and can also be paired with a 433M wireless module for remote control of motors or other loads
  • Dual H-bridge motor drive, capable of simultaneously driving two DC motors or one 4-wire two-phase stepper motor

Description

Product parameters
1. Size: 38MMX27MMX14MM
2. Module power supply voltage: 3V-14V;
3. The input voltage at the signal end is 2.2-6V, supporting 3.3V and TTL levels;
4. Single circuit working current 5A, peak current up to 9A, low standby current (less than 10uA);
5. Installation hole diameter: 2mm.
6. Weight: 14g
