Description:

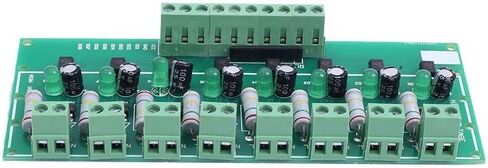

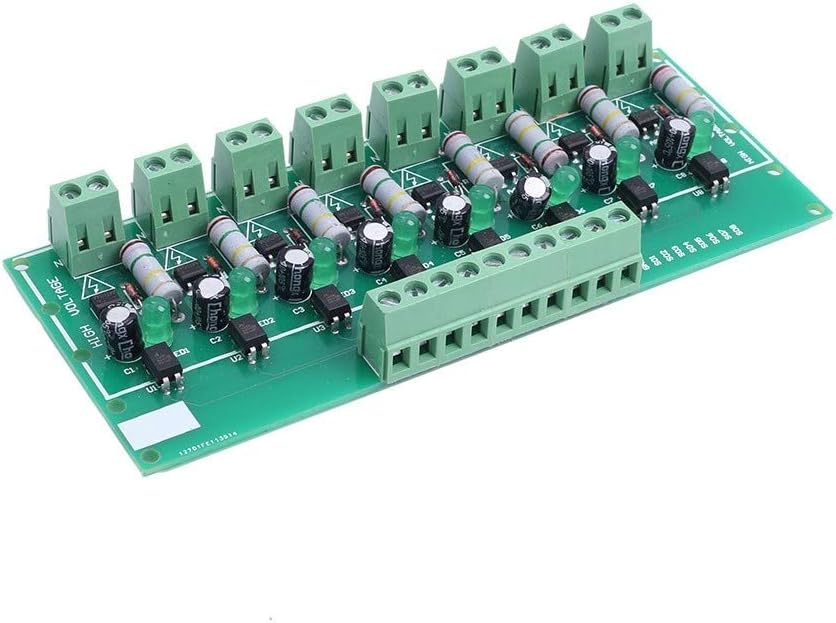

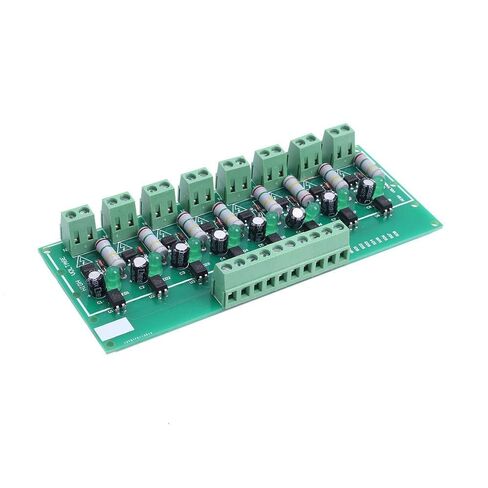

It is a AC 110V 220V 8-Channel Optocoupler Isolation Module. It can detect 8-Channel AC input power sources and output DC voltage according to the detection results. The output results can be applied to PLC system and other control equipment. It can detect whether there is input power. The output status will change when the input power is detected.

Features:
1. Optocoupler isolation control.
2. 8-Channel input and output.
3. PNP(High level) signal output.
4. Support AC 110V and 220V Input.
5. DC 3V-5V load voltage

Specification:
Product name: AC 110V 220V 8-Channel Optocoupler Isolation Module
Input Voltage: AC 110V~220
Load Input Voltage: DC 3V~5V
Output type: PNP (High level) signal output
Output current: 100mA~300mA
Work Temperature: -20℃~85℃
Work Humidity: 10%~85%RH

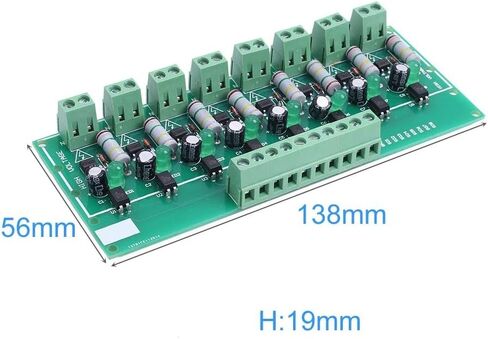

Size: 138*56*19mm

Application:
1. AC power detection.
2. PLC control system.
3. Device alarm.

Package list :
1pcs AC 110V 220V 8-Channel Optocoupler Isolation Module
