Pressure Sensor, Cuidr Thin Film Pressure Sensor, 20G~10KG 80mm Force Sensing Resistor, Long Strip Sensor for Smart Home, Wearable Devices (2 Pack)

KWD 6
Brand
Cuidr
ModelC-PS-80R
– 1 +

Special Features

  • 【Premium Material】Composed of ultra-thin film of excellent mechanical property, excellent conductive materials and nanometre pressure sensitive layers
  • 【High Performance】The pressure sensor can sense static and dynamic pressure in a high respond speed, recording the intensity and frequency of force

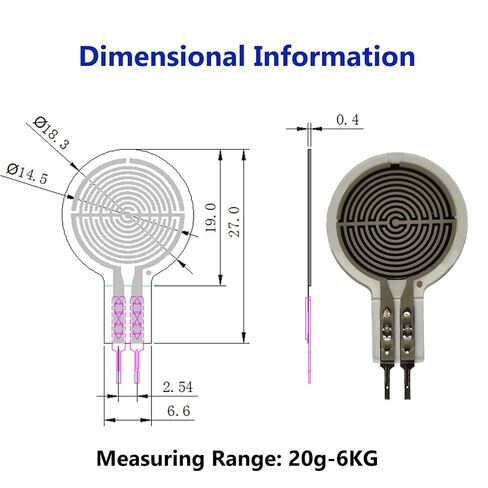

  • 【Important Parameter】Length: 80 mm/3.2in; Width:15mm/0.6in; Range: 20g ~ 10kg; Thickness: less than 0.4mm; Response point: less than 20g; Test voltage: 3.3-5v; Working temperature:- 40℃~ 85℃
  • 【Widely Applications】The pressure sensors are widely used in smart home, wearable devices, new energy and medical electronics, such as bed monitoring system, sitting posture monitoring, correction, smart cushion and medical device system, etc
  • 【Package Includes】2 x Pressure Sensor, the sensor comes with 4 3mm diameter positioning holes, which allows you to fix the sensor to other devices

Description

Description
The pressure sensor is durable and designed to sense static and dynamic pressure in a high respond speed. Its advantages of recording the intensity and frequency of force make it widely used in all kinds of applications, such as bed monitoring system, intelligent sneaker and medical device system.

Specifications
Working voltage: DC 3.3-5V
Measurement range: 20g-10KG
Thickness: Response point: Static Pressure & Dynamic Pressure Measurement (within the frequency of 10Hz)
Initial Resistance: >10MΩ
Activation Time:Operating Temperature: -40℃~+85℃
Lifespan:>1million times
Hysteresis: +15%，(RF+ -RF-)/FR+, 3000g Force
Initial resistance: greater than 200MΩ (no load)
Response time: EMI: Not generate
EDS: Not generate

Package Includes

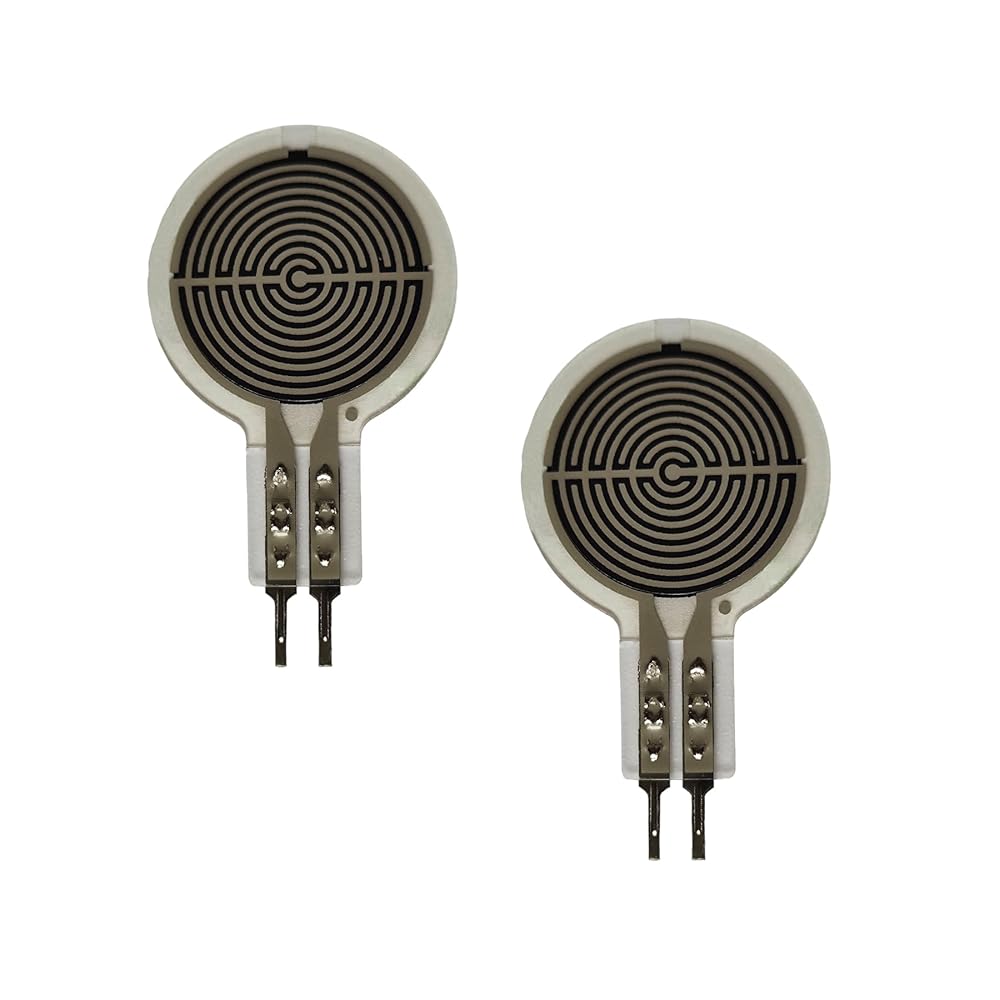

2x Thin Film Force Pressure Sensor 20g-10kg
