90HP Outboard Steering Cable Kit
The marine steering system for single-outboard powered boats rated up to 90 HP, including runabouts and inflatables — and outboard engines tilt tubes up to 90 HP (total).

Features:
Super low-friction helm for smooth comfortable steering

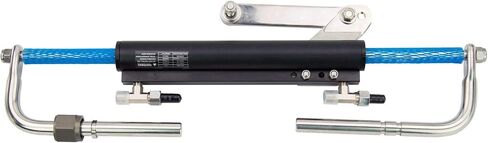

Balanced cylinder, featuring a compact design that fits most splash wells
4.3 turns lock-to-lock

Specifications:
CAPACITY CM3: 16
No. of PISTONS: 5
MAX PRESSION BARS: 68
TURNS OF WHEEL: 4.3
TUBE I.D mm: 25
ROD I.D mm: 14
OUTPUT FORCE/KGF: 232
STROKE mm: 200
VOLUME cc: 73
APPLICATION: UP TO 90Hp

Warranty: 1 Year

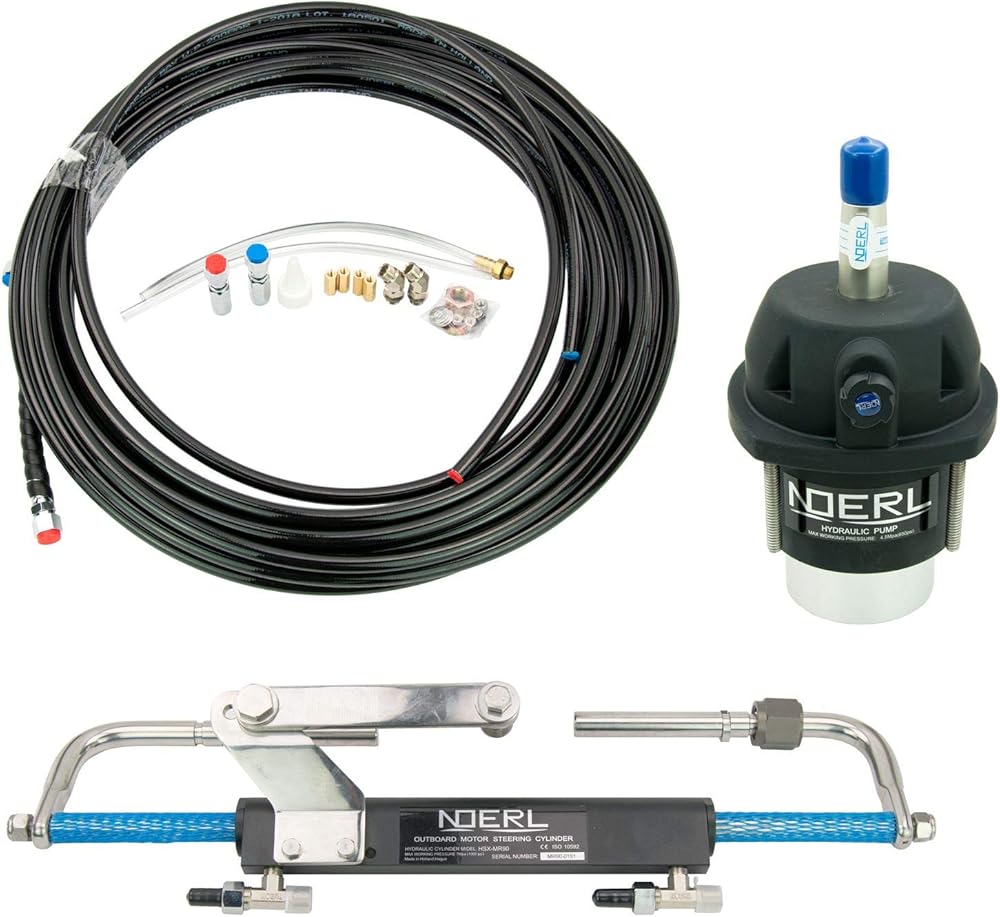

Package Included:

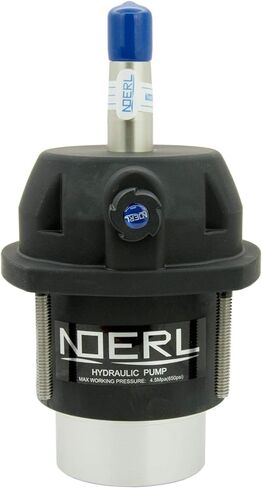

1 x Helm Pump
1 x Cylinder
1 x Tubing Kit (Comes complete with everything needed for an install)
2 x 23 FT hoses ( 23FT =7 meters, easy to cut in order to adjust its length to meet your demand)

Note:
Hydraulic steering fluid not included. Please buy it from your local store. The type is 10#/15# ashless anti-wear hydraulic oil. Gear oil is not allowed, it will damage our hydraulic steering system.
