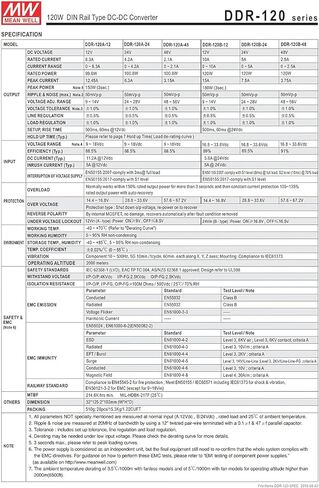

Features
Compliance to EN50155 and EN45545-2 railway standard
Width only 32mm
2:1 wide input range
-40~+70°C wide working temperature
150% peak load capability
DC output adjustable
Protections: Short circuit / Overload /Over voltage / Input reverse polarity / Input under voltage protection
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
4KVdc I/O isolation (Reinforced isolation)
3 years warranty
Description

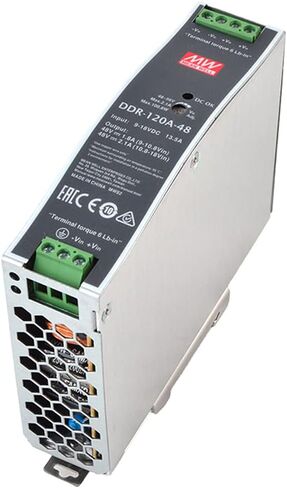

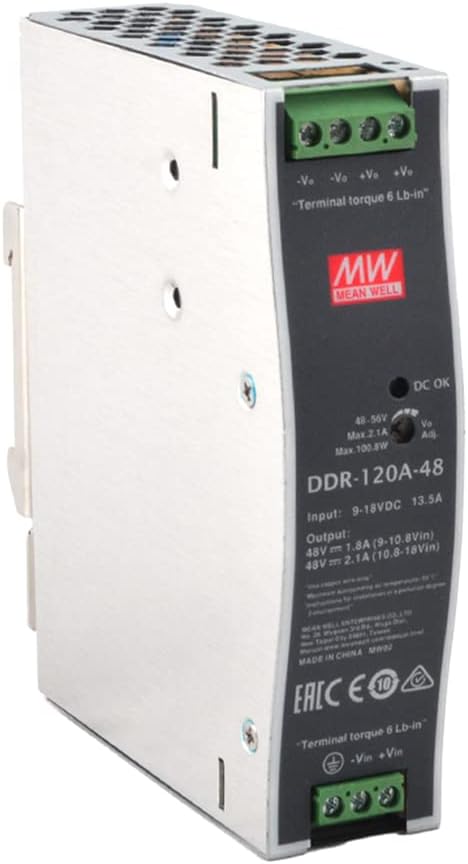

DDR-120 series is a 120W DIN Rail type DC-DC converter with main features including DIN rail-type easy installation, ultra slim width (32mm), 2:1 wide input voltage, -40~+70°C wide operating temperature, 4KVdc I/O isolation, 150% peak load, adjustable output voltage and full protective functions...etc.

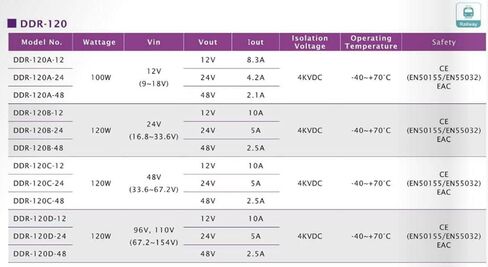

This series of models has verious input options: 9~18V/16.8~33.6V/33.6~67.2V/67.2~154V and various output options: 12V/24V/48V and can be used for industrial & railway control, security control, communication system and other fields. Suitable applications include DC buck/boost regulator, increasing system insulation level and voltage drop compensation along cable...etc.
Applications
Bus,tram, metro or railway system
Industrial control system
Semi-conductor fabrication equipment
Factory automation
Electro-mechanical
Wireless network
Telecom or datacom system
