2PCS DS3218 PRO 20KG Upgrade Rc Steering Digital Servo High Torque Full Metal Gear Motors Server for Rc Funs 1/8 1/10 1/12 Scale Car Baja Control Angle 270 Degree

KWD 12

Brand
RCmall
Weight
128 g
1 +

Special Features

  • ✨DS3218 PRO is an improve version of DS3218 with stainless steel gear . Accuracy and service life has been greatly increased . Accuracy and linearity have been greatly improved! Accurate movement can satisfy the needs of making robots.
  • ✨Stall Torque (5V): 21 kg/cm (291.5oz/in) ; Stall Torque (6.8V): 23.5 kg/cm (326.2 oz/in),Speed : 0.12 sec/60°(5V) / 0.09 sec/60°(6.8V) .
  • ✨Compatible with 1/8 1/10 and 1/12 scale crawler buggy truck rc car, mechanical arm, quadcopter drone and other remote control equipment.
  • ✨Dual ball bearings. Size: 40 x 20 x 40.5 mm ( 1.58 x 0.79 x 1.60 in) . Max control angle is 270 degree .
  • ✨Package includes : 2 X DS3218 PRO 20KG High Speed Stainless Steel Gear Digital Servo ; 2 X 25T Adjustable Metal Servo Arm ; 2 X Accessories

Description

RCmall 2Pcs DS3218 PRO Digital Servo , 20KG Stainless Steel Gear High Speed IP66 Waterproof High Torque RC Servo for 1/8 1/10 1/12 Scale Baja RC Car (Control Angle 270 Degree )

Description
Used For: 1/10 1/8 scale Crawler / Buggy / Truck
Waterproof performance:IP66
Stall Torque (5V): 21 kg/cm (291.5oz/in)
Stall Torque (6.8V): 23.5 kg/cm (326.2 oz/in)
Speed : 0.12 sec/60°(5V) / 0.09 sec/60°(6.8V)
Operating Voltage: 4.8 ~ 6.8 DC Volts
Dead brand: 3μs
Weight: 60 g (2.12 oz)
Motor Type: DC Motor
Gear Type: Stainless Steel
Working frequence: 50-333Hz
Operating travel:270°(PWM 500-2500μs)
Size: 40 x 20 x 40.5 mm ( 1.58 x 0.79 x 1.60 in)

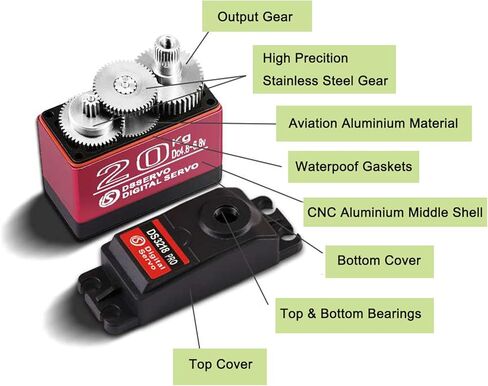

Features:
- High performance digital standard servo
- High-precision metal gears with hard anodizing
- CNC aluminium middle Shell
- Dual ball bearings

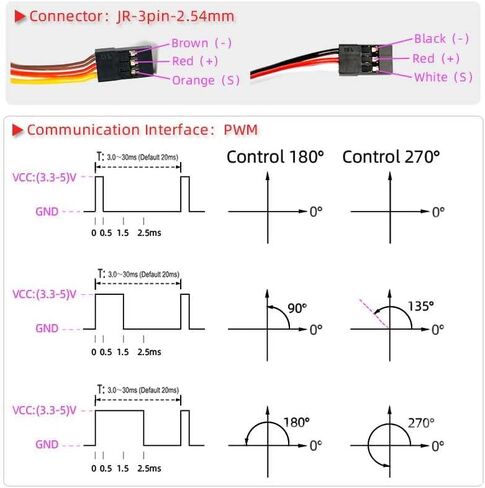

Control Method: PWM
Pulse Width: 500~2500 μsec
Bearing Type: Ball Bearing x 2
Temperature: -20℃~70℃
Connector wire length: 300±5mm

Package Includes :
2 X DS3218 PRO 20KG High Speed Stainless Steel Gear Digital Servo
2 X 25T Adjustable Metal Servo Arm
2 X Accessories
