Product Name:
Electric Power Window Regulator
Type:
Window Regulator
Replace Parts:
51357140590
749-469
BM1551111
WR49469
(Rear Right Passenger Side)

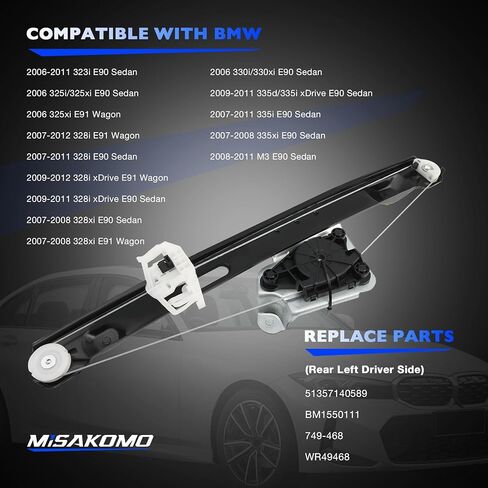

Compatible with BMW
2006-2011 323i E90 All Sedan
2006 325i/325xi E90 Series All Engine Sedan
2006 325xi E91 Series All Engine Station Wagon
2007-2012 328i E91 Series All Engine Station Wagon
2007-2011 328i E90 Series All Engine Sedan
2009-2012 328i xDrive E91 Series All Engine Station Wagon
2009-2011 328i xDrive E90 Series All Engine Sedan
2007-2008 328xi E90 Series All Engine Sedan
2007-2008 328xi E91 Series All Engine Station Wagon
2006 330i/330xi E90 Series All Engine Sedan
2009-2011 335d E90 Series All Engine Sedan
2007-2011 335i E90 Series All Engine Sedan
2009-2011 335i xDrive E90 Series All Engine Sedan
2007-2008 335xi E90 Series All Engine Sedan
2008-2011 M3 E90 Series All Engine Sedan
Function Description:

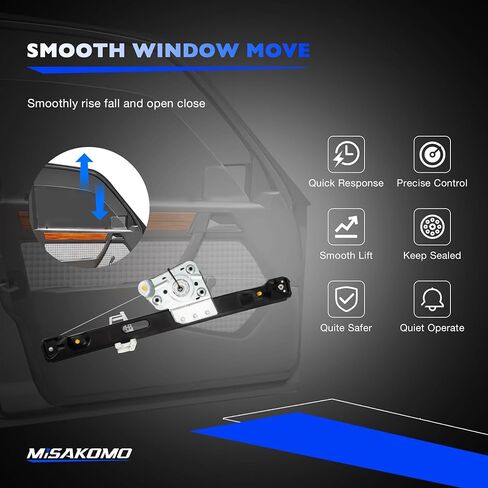

Window regulator is a mechanism inside a vehicle's door panel which is responsible for controlling the movement of the window glass.It consists of several components including a motor, regulators and cables.The regulator is powered by a motor which is connected to the regulator and the window glass, usually controlled by a switch or button located on the interior of the vehicle. Ensuring that the window moves smoothly and does not vibrate or jam and helps to keep the window sealed, stoping drafts, water, and other elements from entering the vehicle

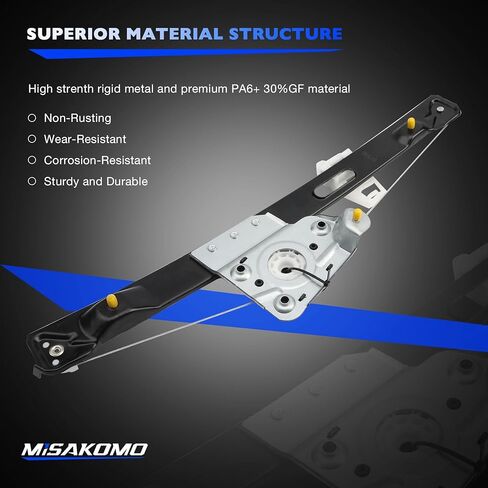

Material and Construction:
Strong Metal lifting bracket

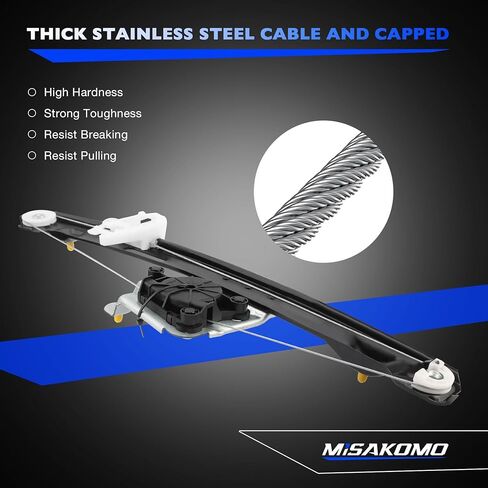

Thickened steel cable and capped ends
Performance and Features:
Sturdy And Durable
Wear-Resistant
Corrosion-Resistant
Non-Rusting
Long-Lasting
Installation Steps:
1、Detach the door panel
2、Loosen the bolts and screws for the regulator and window glass. Raise the glass window and secure it with tape
3、Take out the old regulator and motor
4、Install the new regulator in the same position
5、Reinstall all the bolts and screws
6、Tighten the screws with the wrench
7、Connect the wires to the window motor
8、Lower the glass window to the new regulator and tigthen the mounting hardwares. Put back the plastic liner and door panel
9、Test if the regulator functions good
Product Specifications:
Electric/Manual: Electric Power
Motor Included: without Motor
Position: Rear Right ( Rear Passenger Side )
Attachment Type: Bolt On
Connector: 2Pins
Material: Plastic and Metal
Gear Material: Plastic
Fitment: Direct Replacement
