Digital Pressure Switch Controller, Air Pressure Regulator Valve Pneumatic Vacuum Digital Controller Swtich 12~24V DC 0-101kPa, RC 1/8in Interface Thread

KWD 13
Brand
Tissting
– 1 +

Special Features

  • 【Digital Pressure Switch】Digital pressure switch working voltage is DC 12-24V, rated working pressure is 0 to -101kPa, air pressure regulator ensures good working safety.
  • 【High quality material】Made of high quality ABS material, digital display, RC 1/8in thread pressure switch has high accuracy and reliability. Light weight, small size, easy to install and can be done quickly in minutes.

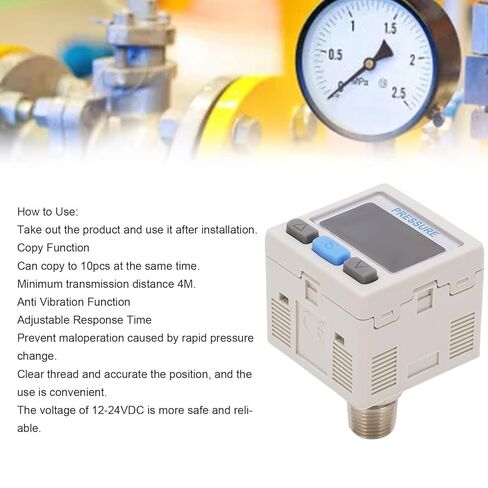

  • 【Copy function】When the pressure switch is energized, the set value of one main side sensor can be copied to the side sensor, and up to 10 can be copied at the same time. The minimum transmission distance is 4 M. A special communication line is required for copying.
  • 【Stable operation】Practical anti-vibration function can adjust the response time to prevent misoperation caused by rapid pressure changes. Adjustable high/low pressure is as easy as pressing a button.
  • 【Service】We are committed to providing our customers with high quality products and perfect after-sales service. If you have any questions about our products, please feel free to send us an email and we will provide you with a satisfactory solution within 24 hours.

Description

Specification:

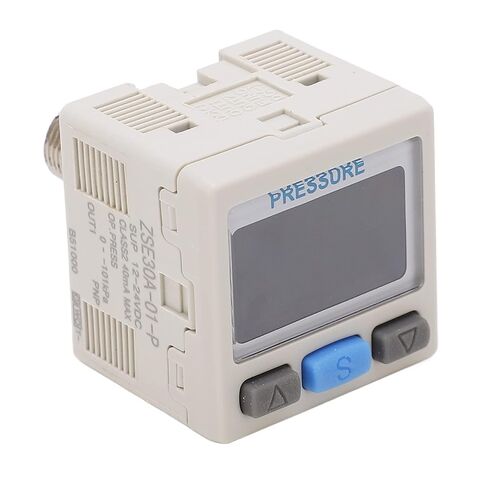

Item Type: Digital Pressure Switch
Operating Voltage: 12~24VDC ± 10%
Consumption Current: ≤ 40mA
Switch Output: PNP open collector 1 output.
Maximum Load Current: 80mA
Maximum Applied Voltage: 28V
Response Tme: ≤ 2.5ms
Recommended Rated Pressure Range: 0 ~ -101kPa
Set Pressure Range: 10.0 ~ -105.0kPa
Withstand Voltage Test Voltage: 500kPa
Minimum Setting Unit: 0.1kPa
Suitable Fluid: For air, non corrosive gas, non combustible gas.

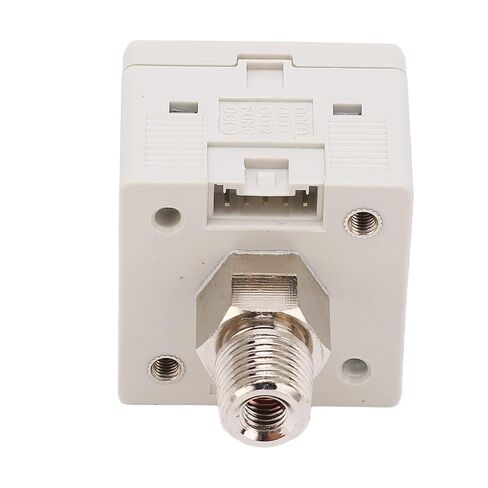

Interface Thread: RC 1/8in

Package List:
1 x Digital Pressure Switch
1 x Connecting Cable
1 x User Manual
