Professional 3WD Smart Robot Car Chassis Kit with 58mm Nylon Omni Wheel & DC Encoder Motors for Arduino Raspberry Pie Microbit, 2-Layer Metal Triangle Panel Robotic Platform DIY Heavy Load Model

KWD 28.500
Brand
Swaytail
Weight
61 g
– 1 +

Special Features

  • 【Solid Robot Platform】: This 3wd robot car chassis has 2 layers of metal panels and is very strong. The load weight is about 3-5kg. And the 58mm omnidirectional wheel is tenacious and wearable. 2-layer design accommodates many electronics.
  • 【High Torque DC Motor】: Motor is the core for the robot tank car chassis. 3pcs high torque encoder DC motor is used for this robot smart car chassis. It can get the speed feedback by the Arduino UNO R3 / Raspberry pie / Micro-bit programming.
  • 【DIY RC Model】: This tank car chassis is very suitable for the maker, school students for robot learning, STEAM education, teaching, competition. One can DIY a remote control robotic smart car model by wifi, PS2 or Bluetooth. We also provide the source code based on Arduino controller kit.
  • 【3WD Omni Wheel Car Chassis】: Based on this robot car chassis,one can do many robotic and electronic experiments, like, RoS, AI. Also, many schools can use this robot chassis for students learn robotics, and STEAM education, competition, and many other robotic experiments. This helps school students better understand the construction of robots and can learn a lot from it.
  • 【What You Get】: You will get the 3wd metal smart robot car chassis kit, which includes 3pcs omni wheels, 3pcs dc encoder high toque motors, 3pcs metal motor bracket, 3pcs metal couplings, 2pcs metal panel, and 1 set screw kit. Any question about this 3wd tank car chassis, please do not hestitate to contact us, and we will get back to you asap.

Description

Features:
The three-wheel drive platform uses omnidirectional wheel technology to achieve all-round movement: vertical and horizontal movement;
The car chassis is equipped with 3 high-torque motors with a code wheel and speed feedback.
Provide sufficient space for sensors, controllers, etc.
Less accessories, easy to install the robot chassis.
In order to facilitate transportation, the product is not assembled. But it is very easy to install.

3WD Car Chassis Parameters:
Omnidirectional wheel material: Nylon
Wheel diameter: 58mm
Base material: Stainless
Optional motor: 25mm 9V motor (with hall sensor)
Product layer: 2-layer
Product load: About 3-5kg

58mm Omni Wheel Parameters:
Color: black
Wheel diameter: 58 mm
Roll diameter: 13 mm
Body material: Nylon
Roll material: Nylon+PE
Net weight: 60g

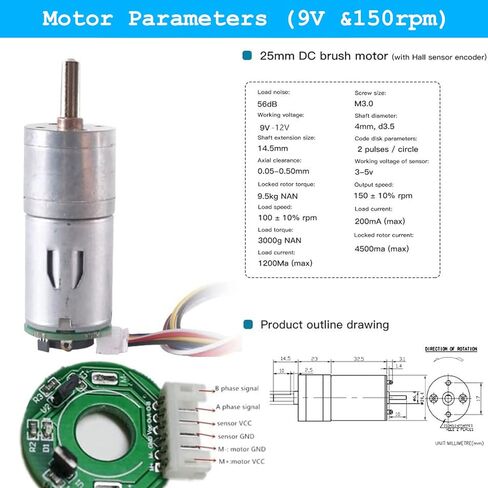

Motor Parameters:
Name: 25mm gear motor
Output speed: 150±10%rpm
No_load current: 200mA (Max)
Stall current: 4500mA(max)
Stall torque: 9.5kgNaN
Rated speed: 100±10%rpm
Rated torque: 3000gNaN
Rated current: 1200mA (Max)
Noise: 56dB
Working voltage: 9-12V
Outside Shaft Length: 14.5mm
Shaft End Play: 0.05-0.50mm
Screw Size:M3.0
Dia. Of Shaft phi 4mm, D3.5

Encoder Parameters:
Type: AB-phase incremental Hall encoder
Line speed: 150 (measured by reducer output shaft)
Supply voltage: 5V
Interface type: PH2.0 (standard motor cable)

Package Included:
2pcs Top Board
3pcs Omni Wheel
3pcs DC Motor
3pcs Motor Bracket
1set Screw Kit
