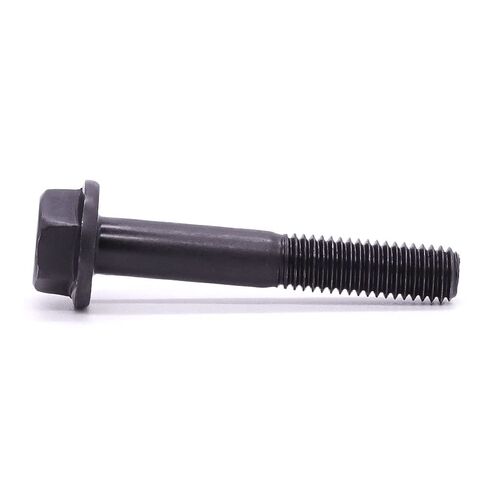

M10-1.5 x 50mm Flanged Hex Washer Head Bolts, 10.9 Grade Alloy Steel, Black Oxide Finish, Coarse Thread UNC, 10 PCS

Special Features

Package Includes 10 PCS M10-1.5 x 50mm Flanged Hex Bolts with Extra Big Washer Head to replace additional flat washer
Screw Length: 50mm (measured from under the head); Thread Coverage: Partial Thread; Thread Pitch: 1.5mm
Head Height: 9.2mm; Washer Head Diameter: 22.3mm; Hex Drive Size:15mm
Specifications Meet GB5789, the diameter of the washer is much larger than that of GB5787.
Made of grade 10.9 alloy steel which provides good strength and ideal use in indoor projects. You could also find stainless steel flanged hex bolts if you hope to use them in environments with mositure because black oxide finish is not a protective finish and will rust when exposed to mositure environment for a long time.

Description

Specification:
Specifications Standard Meets GB5789
Thread Diameter 10mm
Thread Pitch: 1.5mm
Head Diameter 22.3mm
Head Height 9.2mm
Hex Drive Size: 15mm
Color: Black
Material: 10.9 Grade Alloy Steel

About Flanged Hex Bolts

A flanged hex bolt is a kind of hex bolt with a flanged type washer head on the top and full machine threads.They are known for their effecient application performance and endurance widely used in a variety of industries such as construction, manufacturing, engineering, assembling, aircraft and so on and serves a wide range of use for professionals, amateurs, landlords, repairmen and DIYers.

The 10.9-Class hex socket screw shows good performance in bad environments like high temperature, cold weather and high humidity areas without the need for time consuming and costly maintenance.
