Marine Terminal Block 4 Gang Double Row Stainless Terminal Blocks, 12-22 AWG Copper, 20A/450V, Spacing 9.5mm

KWD 4
Brand
MTQY
Weight
21 g
Styleterminal block 4P
– 1 +

Special Features

  • Including 1 x Double-row stainless steel terminal
  • Rated voltage: 450V. Rated current: 20A. Wire diameter: 22-12AWG. Number of poles: 4P
  • Rated impulse voltage: 2.5KV. Mechanical properties: Environmental temperature: -30 degrees Celsius to 120 degrees Celsius. Maximum locking torque: 10kg.cm

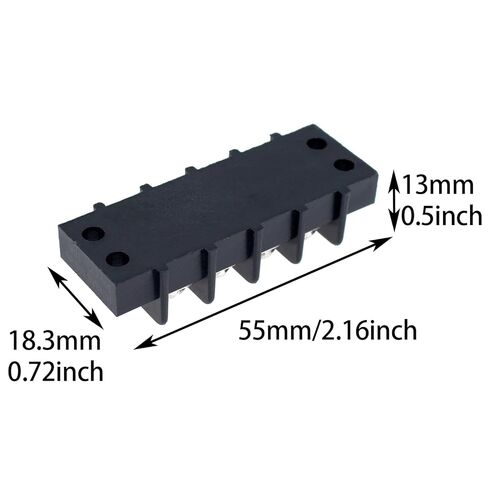

  • Spacing: 9.5mm (0.374"). Plastic part: PBT, UL94V-0. Contact material: steel, tin plated/brass, tin plated
  • High-quality marine products, far superior to competitor product quality.

Description

Specification:

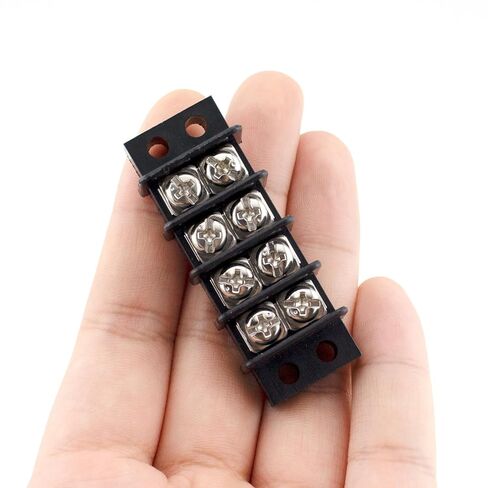

Double-row stainless steel terminal block 4P
Rated voltage/current: 450V/20A
Torque value: M4, 10.53 lb-in
Wire range: 10-22 AWG
