QIYANGBRO(Pack of 4PCS) Rocker Switch 30A 250VAC/35 125VAC KCD2 KCD4 DPST 4 Pin Green Lighted 120V Rocker Toffle Switch ON Off Heavy Duty

KWD 5
Brand
QIYANGBRO
Color30A Green Lighted
– 1 +

Special Features

  • 【30A Rocker Switch】 It's a Large Current Heavy Duty Rocker Switch, the Switch Rating is 30A 250VAC. So the switch can be used well on 3A, 6A, 10A, 15A, 16A, 20A, 25A, 30A at 120 Volt or 240 Volt.
  • 【Red 120V Rocker Switch】 This lighted Rocker Switch with Red Lamp, The input voltage for the lamp of switch should be AC 110V to 250V. The Switch Lamp will light up to indicate the operating status of the device when the switch is turned ON.
  • 【ON OFF DPST Switch】 It's a DPST 4 Pin ON OFF Rocker Switch, Double Pole Single Throw design, and T85 Temperature Degree(-25C to +85C).

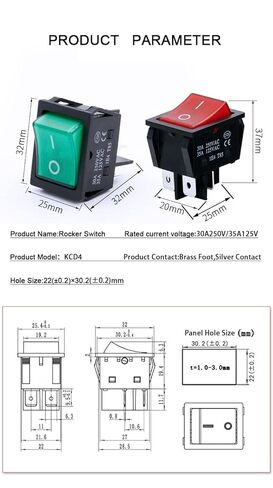

  • 【Installation】 The KCD2 KCD4 Rocker Switch fits for 30X22mm panel Cut-out size, very easy to install(Snap In flush mount version).
  • 【Application】 It's widely used as Industrial & Scientific Toggle Switch, Fit for most kinds of household appliances such as Electric welding machine， water dispenser, treadmill, coffee pot and other electronic equipments.

Description

KCD2 KCD4 Rocker Switch:
Rating: 30A 250VAC/35A 125VAC.
Function: DPST 4 PIN ON OFF
Shape: Rectangle Shape, Red Actuator
Lamp Voltage: AC 110V to 250V
Contact Resistance: ≤50 mΩ
Insulated Resistance: ≥ 100 mΩ
Operating Temperature: T85
Electrical Life: ≥10000 Cycles

30 Amp Rocker Switch
30A 250VAC Large Current Heavy Duty Rocker Switch can be used well on 3A, 6A, 10A, 15A, 16A, 20A, 25A, 30A at 120 Volt or 240 Volt.
DPST Rocker Switch
It's a DPST 4 Pin ON/OFF Rocker Switch, Double Pole Single Throw design, and T125 Temperature Degree(-25C to +125C).
120V lighted Rocker Switch
The input voltage for the lamp of the switch should be 110V to 250V. The Switch Lamp will light up to indicate the operating status of the device when the switch is turned ON.
