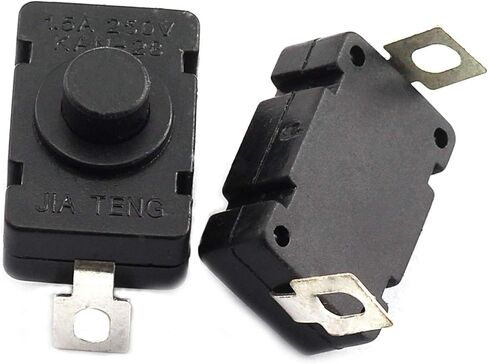

10pcs Self-Lock Push Button Switch KAN-28 for Flashlight SMD Type ON-Off Mini Switch (Bent Pin with Hole)

KWD 3
Brand
RuiLing
Weight
23 g
SizeBent Pin with Hole
– 1 +

Special Features

  • Type: 10pcs Self-Lock Push Button Switch, widely used primary electrical appliances.
  • Model: KAN-28, Rated Voltage: DC 30V, Rated Current: 1A, Contact Resistance: 100M ohm max, Insulation Resistance: 100M ohm min, Withstand Voltage: AC 500V / 1min
  • Self-Lock Switch: Simple structure, good spring resilience, press button to turn on and off, easy to operate.
  • Working Principle: Push-button switch is a switch that used a button to push the transmission mechanism to turn or or off a moving contact with a static contact and switch the circuit.
  • Usage: In the electric automatic control circuit, it is used to send the control signal manually to control contactor, relay, electromagnetic starter, etc.

Description

Product Parameter:
Name: Self-Lock Push Button Switch
Model: KAN-28
Rated Voltage: DC 30V
Rated Current: 1A
Contact Resistance: 100M ohm max
Insulation Resistance: 100M ohm min
Withstand Voltage: AC 500V / 1min
Actuating Force: 650+/-100gf
Service Life: More than 10000 times
Material: Plastic Shell, Brass SMD
Spring: 65MN

Package Included:
10pcs Self-Lock Push Button Switch
