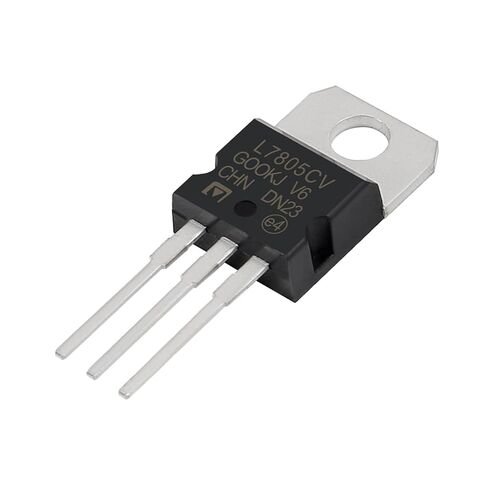

IC L7805CV Voltage Regulator Output 5 V 1.5 A Integrated Circuits L7805 Linear Positive Voltage Regulators TO-220

Specification:
Output Configuration: Positive Voltage Regulators
Output Voltage(Min/Fixed): 4.75-5.25V
Input Voltage: 35V(Max)
Voltage Dropout : 2V @1A (Typ)(Max)
Output Current : 1.5A(Max)
Quiescent current : 4.2-8mA
Ripple rejection ratio: 78dB/120Hz
Output resistance: 17mΩ
Output voltage temperature coefficient -1.1mV / °C (Note: L7805CV and 7805 communication)
Operating Temperature:0°C ~ 125°C
Mounting Type:Through Hole
Package / Case:TO-220
These regulators can provide local real-time regulation, thereby eliminating the power distribution problems associated with single-point regulation.
Thermal overload protection and short circuit protection.
Current limit thermal shutdown protection.

Package include :
20* L7805 L7805CV Voltage Regulators
