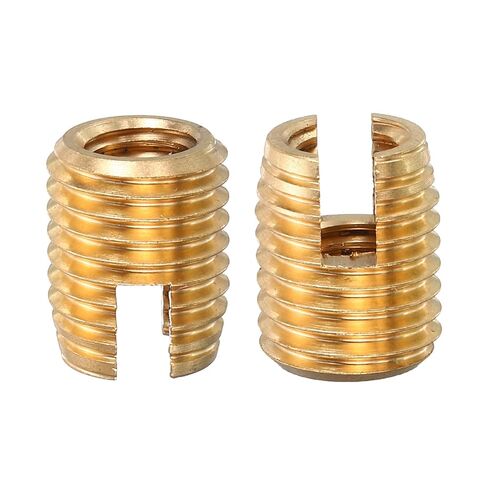

uxcell Self Tapping Threaded Inserts, 5pcs Inner M8-1.25 Outer M12x15 Brass Slotted Thread Repair Inserts Nuts

KWD 4
Brand
uxcell
Category
Fasteners
Weight
19 g
SizeM8-1.25, M12x15mm
Item Package Quantity5
– 1 +

Special Features

  • Inner Thread Size: M5x0.8((Dia.x Pitch); Outer Thread Size:M8x1(Dia.x Pitch); Length: 10mm/0.39"; Min. Drilling Depth: 13mm/0.51"; Refer to Drilling Diameter: 7.1-7.2mm(Plastic), 7.3-7.5mm(Aluminum Alloy), 7.5-7.6mm(Cast Iron); Package Content: 10pcs x Threaded Inserts
  • Material: Brass material, suitable for aluminum alloy, copper alloy, plastic and other substrates with low engineering strength. Strong vibration resistance, can prevent loosening.
  • Advantages: With self-tapping capability, the base material does not need to be tapped in advance. It has a repairing effect on the female thread of the broken tooth, can continue to use the same screws by using the self-tapping screw sleeve.
  • Installation: 1. Fix the self-tapping threaded inserts on the corresponding bolt and nut, so that the three become a whole, and then use a wrench to screw the inserts into the bottom hole, and exit the bolt. 2. Direct use of an assembly tool for installation.
  • Application: It is widely used in household appliances, the industry, construction machinery, electronic products, modular furniture, engineering plastics, aluminum die casting and other industries.
