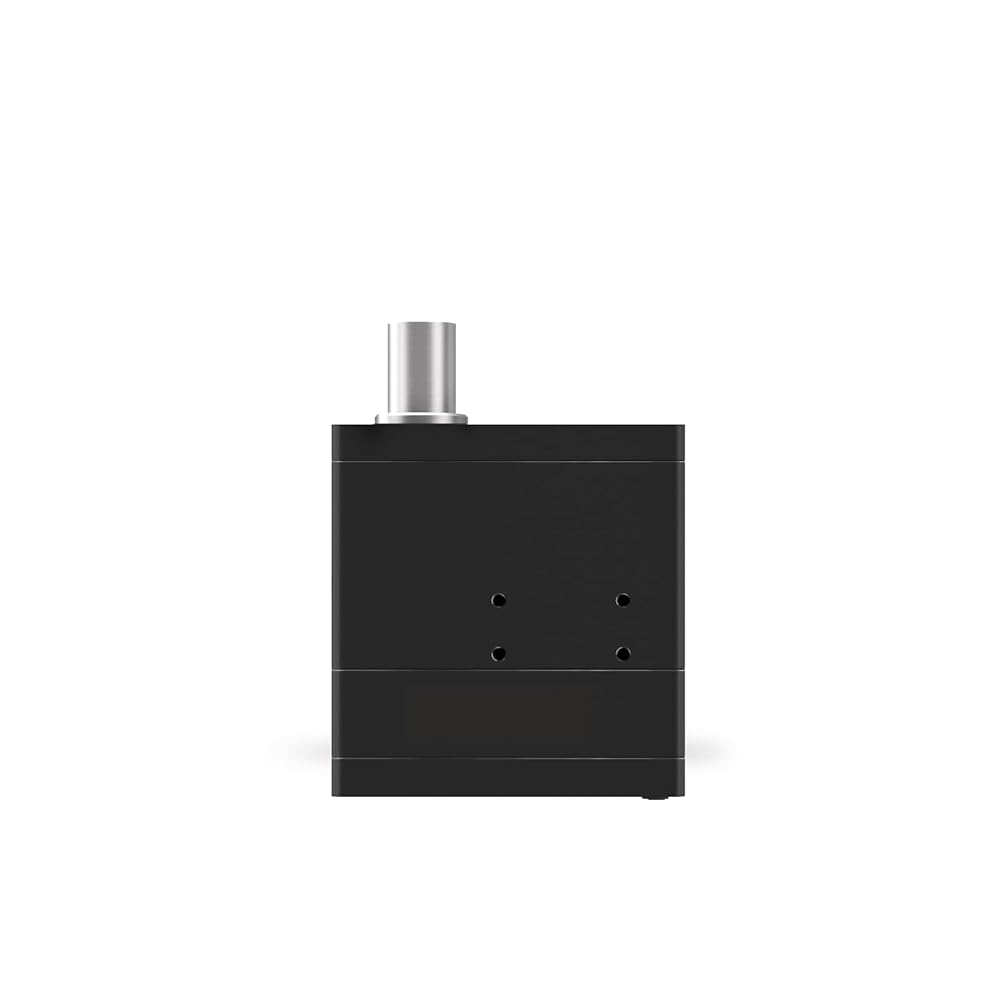

BLASF10-C142 Micro Linear Servo Actuator with Force Sensor(33.7lbs,10mm), High Precision 0.01mm, 5-8mm/s,Coreless Brushless 12V DC Motor,RS485-For Robotics,New Energy,Industrial Automation

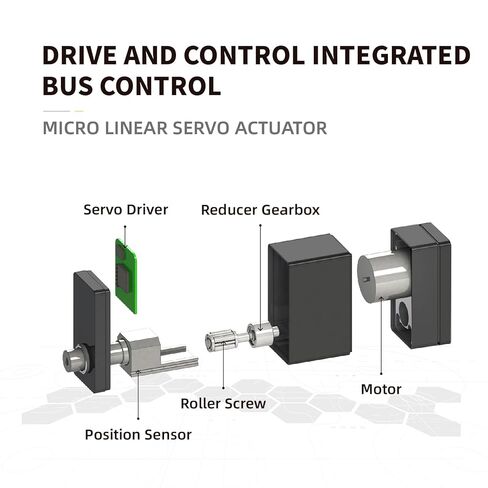

【ADVANCED INTEGRATION 】INPSIRE-ROBOTS BLAS Micro Linear Servo Actuator comes with a small integrated system combining a 12V core-less brushless motor, precision planetary reducer, position sensor, precision screw mechanism and closed-loop drive and control servo system in a single machine.Built-in absolute position sensor enables the retention of position information even during a power loss, without the need for a reference point

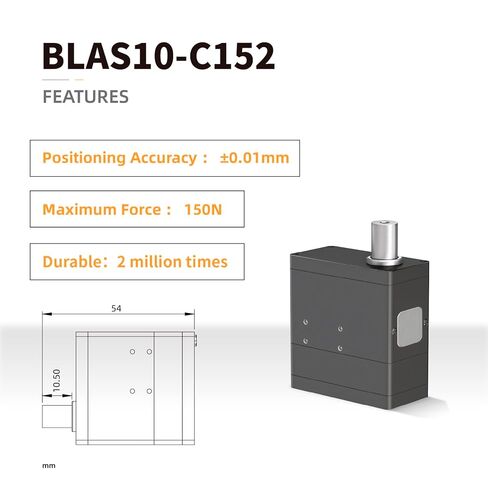

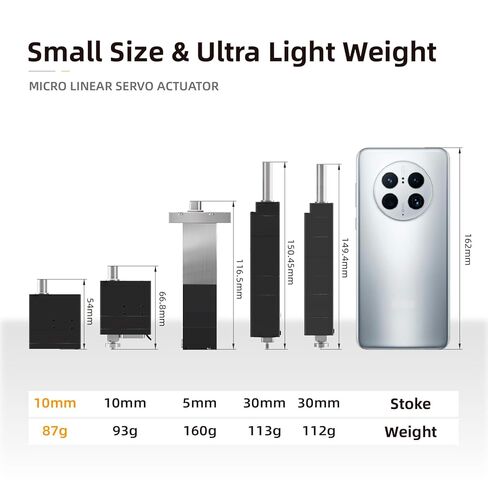

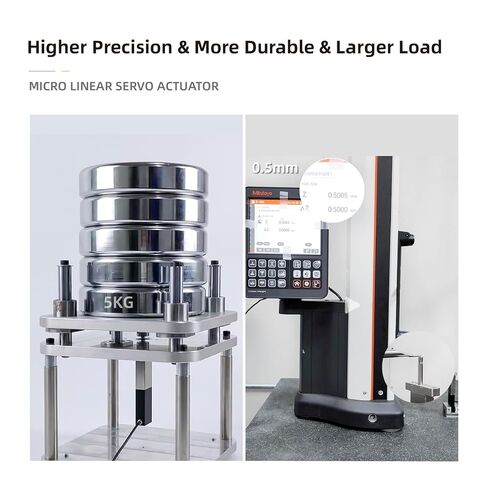

【COMPACT,HIGH PRECISION CONTROL,LONG SERVICE LIFE】: Ultra-compact design(Size:54mm*44mm,Weight:87g) ,control accuracy can easily reach 0.01mm,ensuring highly precise closed-loop servo control within any position of its stroke range and real-time position information feedback. Despite its small size, this mini 12v actuator handling large loads efficiently with a life expectancy of reciprocating more than 3 million times.
【HIGHER FORCE AND POWER DENSITY】: With a maximum stroke length of 10mm and speed of 5mm/sec (no load speed of 8mm/sec), BLAS10 linear motion actuators boasts an impressive force capacity of up to 150N,added self-locking function that activates after a power failure, eliminating the need to reset to zero position,also guarantee the equipment operates safely.Support RS485 communication for enhanced connectivity.

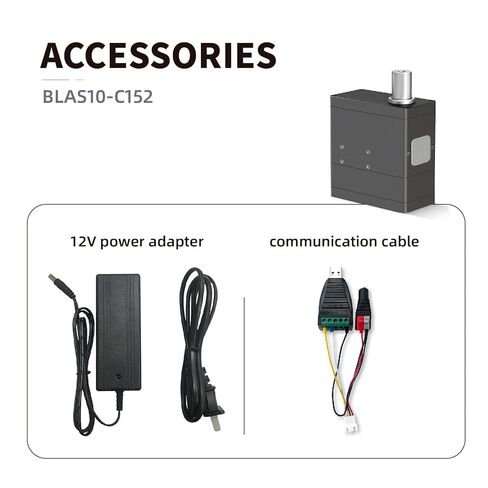

【QUICK INSTALLATION,STRONG ADAPTABILITY,VERSATILE APPLICATION】: Design with M3 threaded interface and standard mechanical interface,you can quickly and easily install it to your electric devices,debugging kit included for test.Adapt to long-term high intensity, high speed work,it is used as a core component in electromechanical systems for range of industries including robotics, Automated industry,biomedical instrument,education&scientific,aerospace. CE, RoHS, and FCC certified, ensuring reliable and safe operation in diverse environments.
【EXPERT SUPPORT,CONTACT US FOR CUSTOMIZATION】:Backed by Inspire-Robots' years of expertise in manufacturing micro linear servo actuators, available in various stroke lengths(10mm-50mm), force(21N-400N),speed level(4mm/s-70mm/s),Precison(0.002mm-0.1mm)and mounting options to meet diverse application needs. We have a professional and experienced technicians team to service you within 24 hours for your project's success.
