Specifications
▪ Name : Relay Switch
▪ Nominal Coil Voltage : 12 V DC
▪ Max Switching Current : 40A
▪ Quantity : 25 Packs
▪ Max Switching Power : 560 W
▪ Coil Power : 1.8 W
▪ Coil Resistance : 80 Ω
▪ Must Operate Voltage : 6~8 V DC
▪ Must Release Voltage : 0.6~3.6 V DC
▪ Maximum Applied Voltage : 15.6 V DC
▪ Contact Resistance : 100mMAX (at6VDC 1A)
▪ Life Expectancy Electrical : 100,000 Operations (at30 Operations/minute)
▪ Life Expectancy Machanical : 10,000,000 Operations
▪ Temperature Range : -30 ~ +80 degrees Celsius
▪ Vibration Resistance : 10~55Hz, 1.5mm
▪ Hunidity : 40% ~ 85%
▪ Insulation Resistance : 100mΩ Min at500VDC
▪ Dielectric Strength Between Open Contacts : 500VAC (for one minute/sec)
▪ Between Contact and coil : 750AC (for one minute/sec)
▪ Operate Tice : 7ms
▪ Release Tice : 5ms
▪ Pin Specifications : 30-VDC, 85-Ground, 86-Trigger, 87-Output N/O, 87a-Output N/C.

Features
▪ Single Pole Single Throw Universal Relay.
▪ 40 A high switching capability.
▪ The 5 terminals on the relay have been sealed to bring more stable performance.

Applications

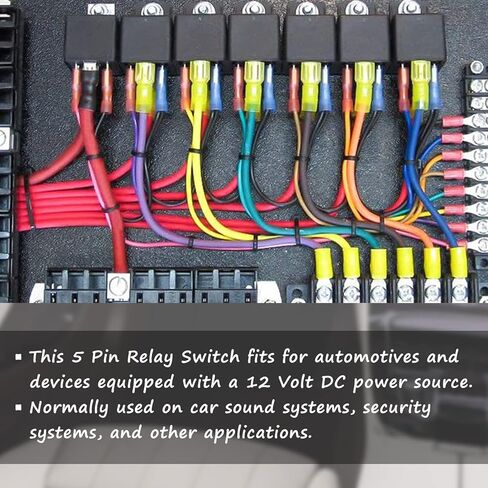

▪ This 5 Pin Relay Switch fits for automotives and devices equipped with a 12 Volt DC power source.
▪ Normally used on car sound systems, security systems, and other applications.

Note
▪ Professional installation is highly recommended !
▪ Manual measurement, error 1-3mm, depending on the actual situation, please understand.
▪ Please feel free to contact us if you have any question about the automotive relay. We would try our best to solve any problem for you.
