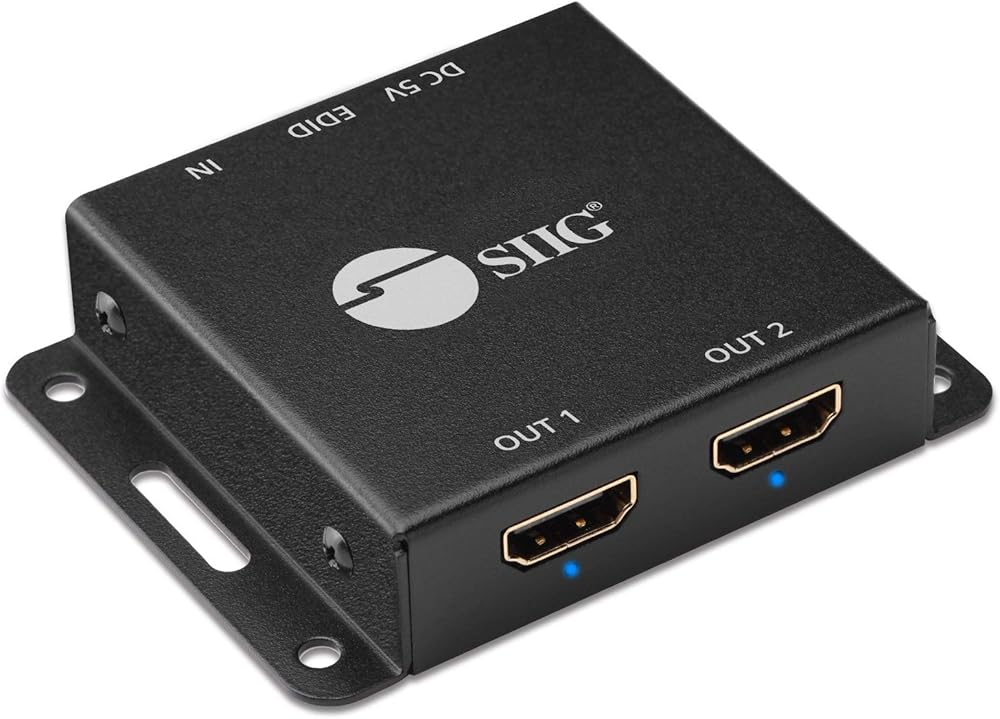

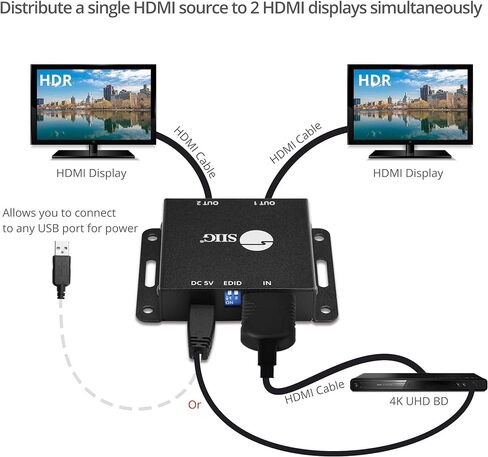

2 PORT HDMI 2.0 SPLITTER: Distributes HDMI video and audio from a single source to 2 HDMI displays simultaneously(mirror) while maintaining signal quality. Compliant with HDMI 2.0 and HDCP 2.2 with 18Gbps bandwidth.
Supports up to 4K (3840x2160) @60Hz (YUV 4:4:4 8-bit), HDR 4K (3840x2160) @60Hz (YUV 4:2:0 10-bit), 3D, xvYCC, x.v.Color & Deep Color. Supports 7.1/5.1/2.1 Ch., Dolby Digital, DTS-HD and Dolby TrueHD audio
RESOLUTION DOWNSCALING feature detects and configures the video resolution automatically according to the capabilities of each connected monitor. Supports simultaneous mixed 4K and 1080p display outputs. *See Notes below for limitations.

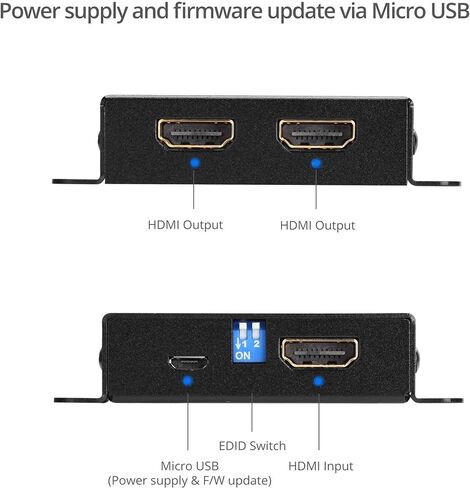

EDID & FIRMWARE MANAGEMENT FEATURE for maximum compatibility now and into the future, offers widest range of monitor/display/TV support from either pre-programmed EDID or EDID learning from the connected displays. Firmware upgradeable (via Mini USB port) for expanded compatibility.

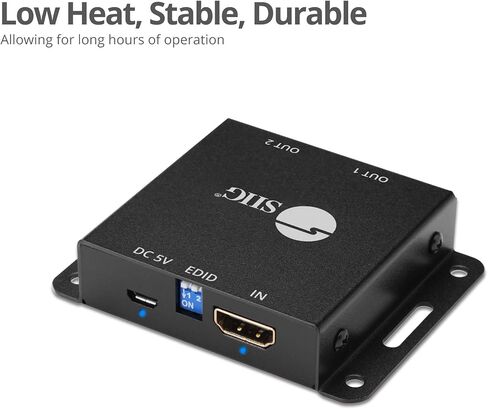

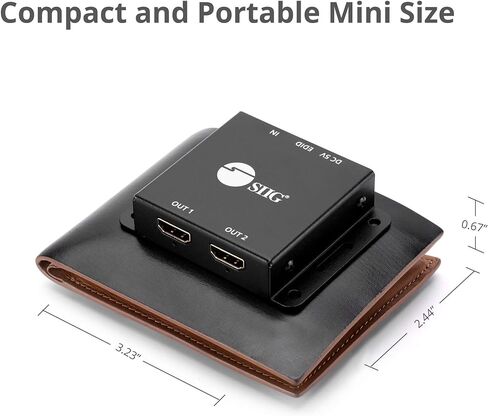

HIGH QUALITY and COMPACT DESIGN: Sturdy metal housing provides durability and reduces EMI/RFI noise interference. It is wall mountable and has a lightweight design that can be placed anywhere to fit A/V equipment. Contact us if you have any questions with this product's functionality or compatibility.
