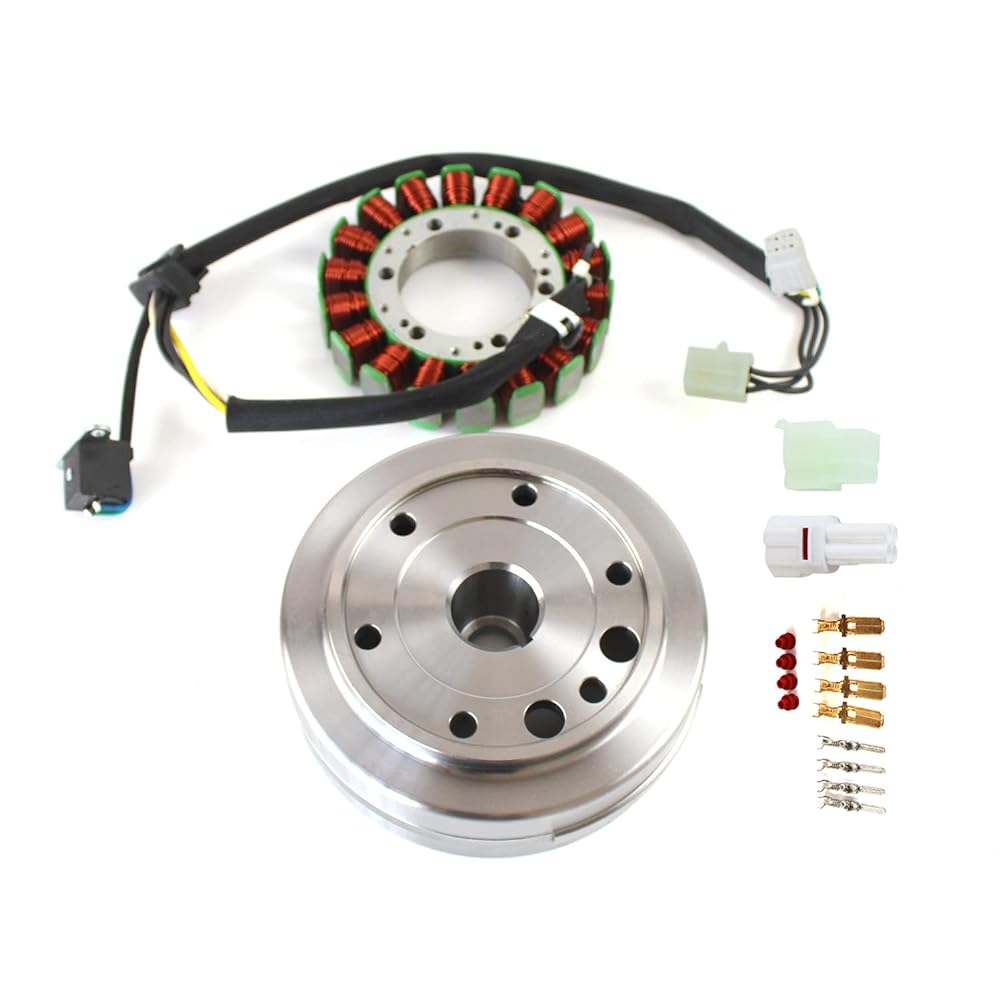

Stator Flywheel Gasket Assy 32101-38F01 32102-38F00 3430-054 3430-071 fits for Suzuki Eiger LTA400 LTF400 Arctic Cat 400 4x4 2002-2008

KWD 62.500
Brand
COPACHI
Weight
3.2 kg
– 1 +

Special Features

  • 🚖PART NAME: Flywheel Rotor Stator Kit. OE PART NUMBER: 3430-053, 3430-054, 3430-071, 3430053, 3430054, 3430071, 32102S-38F01, 32102S-38F00, 32102S38F01, 32102S38F00, 32102-38F00, 3210238F00
  • 🚘CONFIRM YOUR PARTS: Please be sure to confirm the PART NUMBER/MAKE/MODEL/YEAR before purchasing to make sure the part is suitable for your vehicle
  • 🚗QUALITY CONTROL: We will conduct strict quality inspection and testing before shipment, and package the items well to ensure that the products are delivered to you in good condition
  • 🚌PRODUCT FEATURES: High-quality materials, OE standards, professional manufacturing, long service life, easy installation and operation, safe and reliable, stable performance, effective operation, direct replacement
  • 🚙AFTER-SALES SERVICE: If you encounter any problems during the use of the product, please send us the detailed specific instructions or pictures first, and we can provide corresponding services according to your needs

Description

Applicable Vehicles:
Fits for Arctic Cat 375 Automatic 2002
Fits for Arctic Cat 400 Automatic 2003-2008
Fits for Arctic Cat TBX 400 2004-2006
Fits for Arctic Cat TRV 400 2006-2007
Fits for Suzuki LTA 400 Eiger 2002-2007
Fits for Suzuki LTF 400 Eiger 2002-2007

Dimensions Stator:
Interior diameter: 53 mm
Exterior diameter: 119 mm
Thickness: 15 mm

Other specifications Stator:
Number of wires: 7
Number of plugs: 4
Number of pins: 7

Wire to wire resistance:
Alternator : White Between each White = 0.4 ohms+/-20%
Alternator : White to Ground = O.L. ON DISPLAY
Pick up Coil : Blue to green = 200 ohms+/- 20%
Position Sensor :White to yellow = 0.2 ohms+/- 20%

Dimensions Flywheel:
Exterior Diameter: 143 mm
Interior Diameter: 120 mm
Interior Diameter Center Housing: 18 mm
Exterior Diameter Center Housing: 42 mm
Thickness (exterior): 12 mm
Thickness (interior): 13 mm
