Used in Blomberg BRFD2230SS
Suits for 4874960100, 4877880200, 487960200, 4874960100WF
Compatible with Beko Fridge Freezer: GNE134605FX, GNE13462OX, GNE60520DX, GNE V322 X, GNE V321 APX, GNE V320 APS, GL32APB, GNE V320 S
Blomberg Fridge Freezer: KFD9952PXD
Lamona Fridge Freezer: HJA6110, LAM6100

Operating Specifications:
Min. Operating Temperature: 0.6°C (33°F)
Max. Operating Temperature: 37.8°C (100°F)
Min. Working Pressure: 25 psi (172 kPa)
Max. Working Pressure: 125 psi (862 kPa)
Flow Rate: 0.5 gpm (1.89 lpm)
Function: Chemical / Mechanical
Filter Life: 6 months

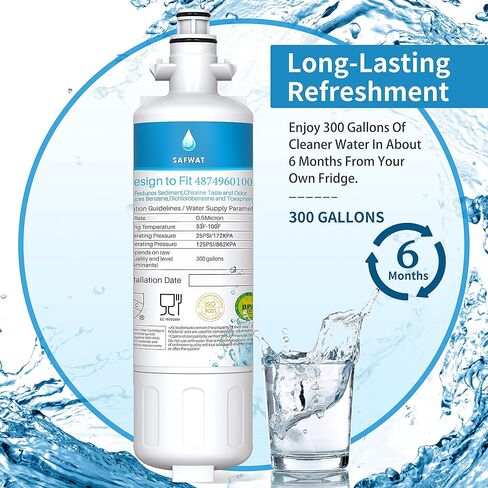

Capacity: 300 gallons (1136 litres)
Dimensions: 4.2cm (Diameter) X 17cm (Length)

Install Instruction
1. On models without a replacement indicator light, apply the month sticker to the new cartridge and mark your calendar to remind you to replace the filter after six months
2. Press the push button to open the filter cover.
3. Pull the old cartridge upward to remove and discard
4. With the new cartridge in the horizontal position, push the cartridge into the manifold hold until it stops
5. Remove the protective cap from the end of the new cartridge
6. Push the filter cover downward until it clicks into place
7. Run water from the dispenser for 6-8 minutes (about 3-4 gallons) to clear the system and prevent sputtering
8. On models with a replacement indicator light, press and hold the RESET WATER FILTER PAD on the dispenser
