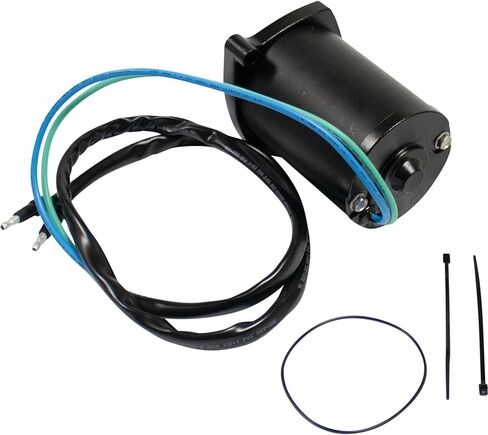

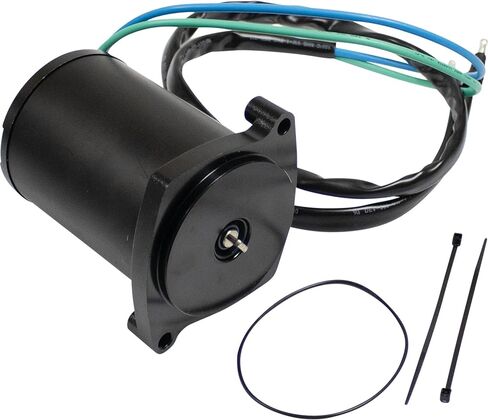

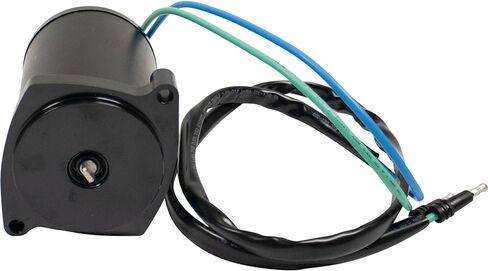

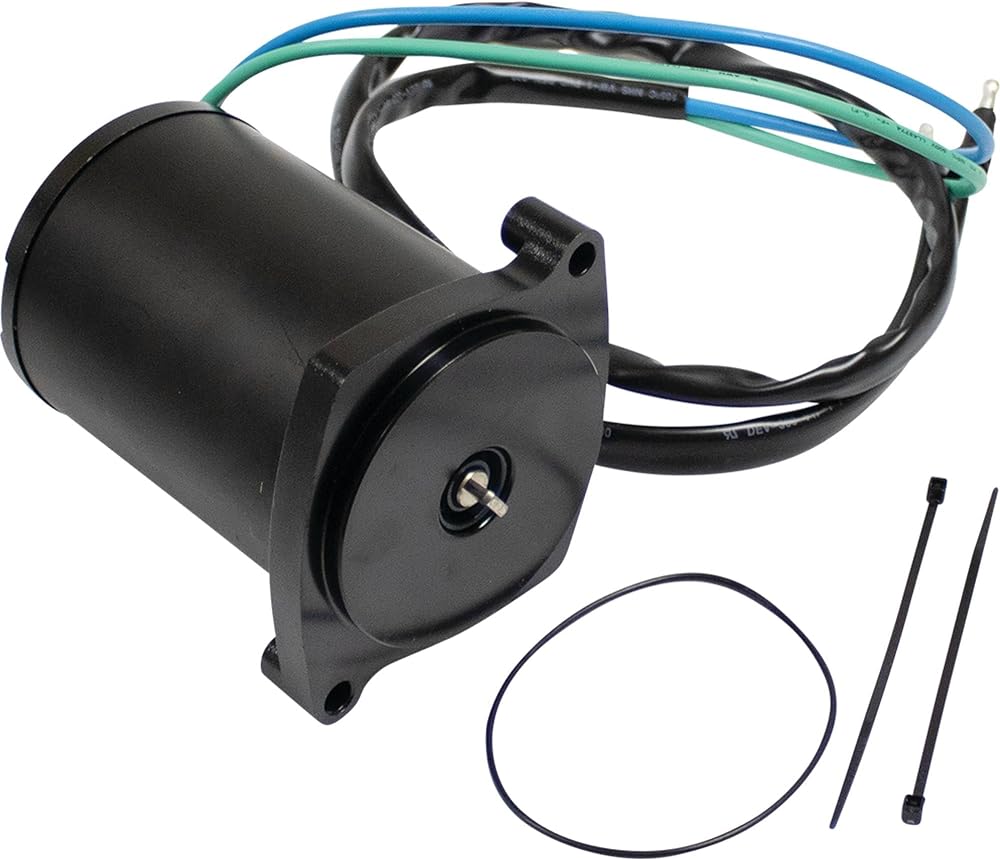

DB Electrical 430-22011 Tilt & Trim Motor Compatible with/Replacement for Mercury Marine All Models All 828708, 828708T, 878265A1, 878265A4, 8M0031551, T1082M, 67-2802, 4-1254, P220N, 6250, 10826N

KWD 38.500
Weight
1.6 kg
– 1 +

Special Features

  • Specs: Description: Tilt & Trim Motor, Voltage: 12, Rotation: RE
  • Replaces OEM Numbers: Mercury Marine 828708, 828708T, 878265A1, 878265A4, 8M0031551, MPA Small Motor P220N, NAPA Small Motor RN10826, Wilson 94-35-1019, Wilson Small Engine 74-35-10826, WAI 10826N, WAI (OLD) 82-7867, Sierra Marine 18-6773, Remy Small Motor RT05005, RCP 26250A, MP Parts 4-1254, Mallory 9-18204, EMS 49-6250, EMP Parts 4-6773, Dixie TM-513, Barsanco 540-10826
  • Compatible With/Replacement For: Mercury Marine All Models All
  • 1-year warranty protects you after your purchase. We're confident that our products will work flawlessly once installed in your vehicle. But in a rare case that it does not, we'll replace it anytime within one year of your order. If you have a problem, we will take every step to assist you, contact us for a replacement.
  • 100% New aftermarket Tilt & Trim Motor built to meet OEM specifications for Mercury Marine

Description

POWER TRIM MOTOR For MERCURY MARINE

==MERCURY Marine==
TILT & TRIM All Models 135 H.P.
TILT & TRIM All Models 150 H.P.
TILT & TRIM All Models 175 H.P.
TILT & TRIM All Models 200 H.P.
TILT & TRIM All Models 225 H.P.

Specifications:
Voltage:12 Volts
Rotation:Reversible
Field Hsg OD:75mm / 2.953in
Overall Length:124.7mm / 4.909in
Shaft OD:8mm / 0.315in
Shaft Notes:Tanged Shaft
Approximate Weight:3.46 lbs / 1.57 kg
Notes:
(2) 6.5mmID Mounting Holes, (2) 3-1/2 Foot Long Wire Harness With Bullet Connectors, 1/4" Mounting Holes

Replaces these part numbers:
API MARINEPT486NM
ARCO MARINE6250
LESTER10826
MERCURY MARINE828708, 828708T, 878265A1, 878265A4
MES MOTORCYCLE & MARINET1082M
SIERRA MARINE18-6773
SPIDER MARINETM10826
