4 Pack 12V Blue LED Illuminated Toggle Switch with Safety Cover Guard 3 Pin ON Off Covered Lighted Toggle Switch Rocker Heavy Duty 20 AMP for Automotive Motorcycle Car RV Truck Boat

KWD 4.500
Brand
AITRIP
Weight
141 g
ColorBlue 3Pin Led Switch
– 1 +

Special Features

  • Rated Voltage and Current: 20A 12V-24VDC; Contact Resistance: ≤ 50MΩ; Insulation Resistance: 100MΩ 500VDC; Electrical life: more than 100, 000 cycles; designed with rocker style, easy to turn ON/OFF.
  • Rating: 12V-20A/3 Pole;Mounting hole diameter: 12mm;Body size: 28mm X 16mm X 69mm/1.1"x0.6"x2.7"(L*W*H);Suitable for almost any motorized vehicle such as Marine, Boat, Motorcycle, Racing Car, Automotive, RV, ATV, UTV, Truck, Golf Cart, Airplane.

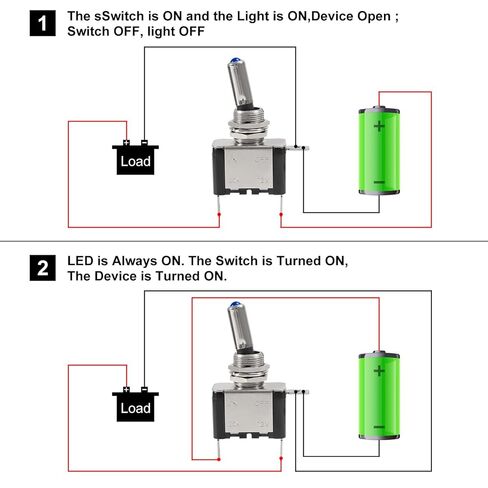

  • Installation Toggle Switches: 1：Insert switches into 0.47" (12mm) mounting hole, place cover on top, and tighten the top hex nut；2：Adjust the bottom hex nut to leave ample space between the switch body and the cover；3：An open cover allows the switch to be flipped ON. Closing the cover forces the switch to the original OFF position. A spring-loaded mechanism holds the covers in either open or closed positions until a force is applied； 4：Connect load, power source, and ground to terminals.
  • Rating: 12V-20A/3 Pole;Mounting hole diameter: 12mm;Body size: 28mm X 16mm X 69mm/1.1"x0.6"x2.7"(L*W*H)
  • 6pcs Rocker Toggle Switch LED Illuminated Blue, with Waterproof Boot Cap Cover, 20A 12V-24VDC, 3 Pin SPST ON/OFF Switch with Metal Bat, Used for Car Auto Truck Boat

Description

Application: Suitable for almost any motorized vehicle such as Marine, Boat, Motorcycle, Racing Car, Automotive, RV, ATV, UTV, Truck, Golf Cart, Airplane.
Product Specification
Colour Name: Blue
Connector Type: SPST
Pins: 3
LED Color: Red,Green,Blue
Style: On-Off
Power: 20A 12V-24VDC
Contact Resistance: max 50MΩ
Insulation Resistance: 100MΩ 500VDC
Electrical life: More than 100,000 cycles
Environment temperature: - 25 degrees ~ 80 degrees.
Package Includes: 4PCS toggle switches with safety covers
