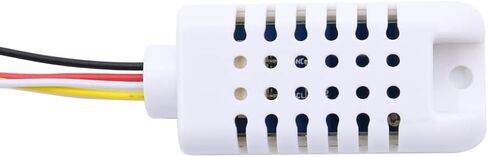

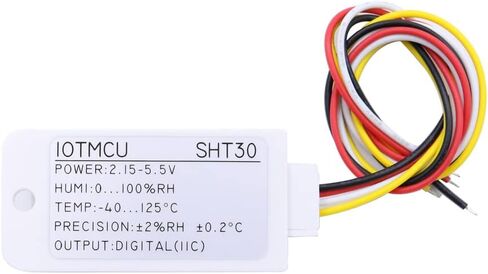

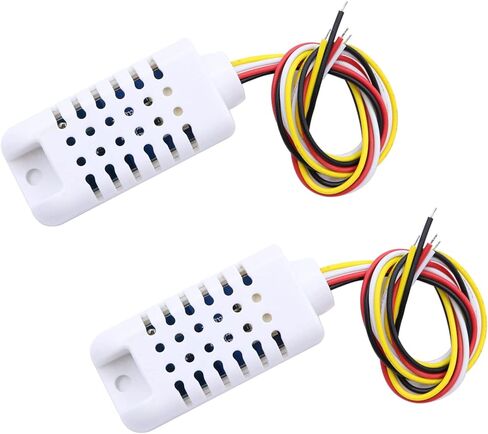

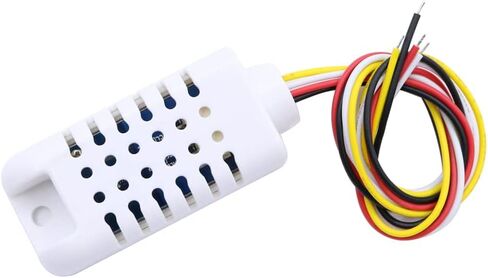

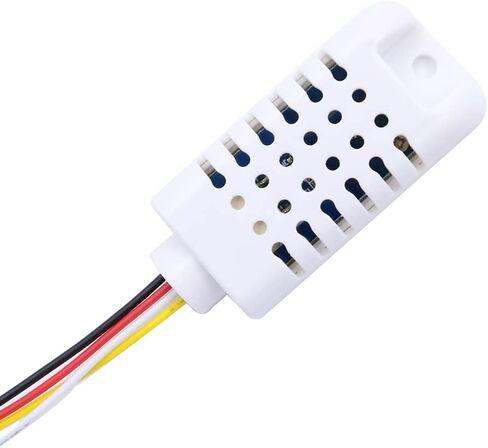

2Pcs SHT30 Temperature and Humidity Sensor Module SHT30 Digital Temperature and Humidity Module Temperature Sensor Humidity Probe Sensor IIC I2C Interface

KWD 4.500
Brand
EC Buying
Weight
10 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • IOT-TH02 SHT30 digital temperature and humidity sensor uses an SHT30 chip
  • Working voltage: 2.15-5.5V; Output signal: IIC digital signal; IIC address: 0X44
  • Humidity measurement range: 0% RH~100% RH; Temperature measurement range: -40℃~125 ℃ (please use in an environment of -40℃~80 ℃ due to the high-temperature resistance of the shell and wire) Accuracy: ± 2% RH ± 0.2 ℃
  • Product size: 53mm * 26.5mm * 13.2mm/2.09inch * 1.04inch * 0.52inch (L * W * H)
  • Product shell material: ABS; Four wires, the color is black, red, white, and yellow

Description

Pin Description
Black GND: Ground
Red VCC: Power supply (2.15-5.5V)
White SDA: Data cable
Yellow SCL: Clock line
