250 Amp Circuit Breaker w/Manual Reset Fuse Holder 12V- 48V DC Manual Reset Switch Waterproof for Car Marine Trolling Motors Boat ATV Manual Power Protect for Audio System Fuse (3 Pack)

KWD 9.500
Brand
EATAKWARD
Weight
91 g
– 1 +

Special Features

  • [Material]: The internal screws of the circuit breaker are made of solid copper. The housing is made of UL 94V0 rated thermoplastic. It is also waterproof. The use of a waterproof cover provides better protection against rusting of metal parts.
  • [Resettable]: This XXX with manual reset button is manually controlled for easy operation and is equipped with a manual reset arm, which can also be used as a flame-out switch. The pushbutton on the circuit breaker can be used as the main disconnector of the circuit.
  • [Specification]: Voltage 12-48V DC, compatible with all 12V/24V systems. Ambient temperature: -32 ° C to 82 ° C (-25 ° F to 180 ° F) Lugs and copper washers added to accessories.

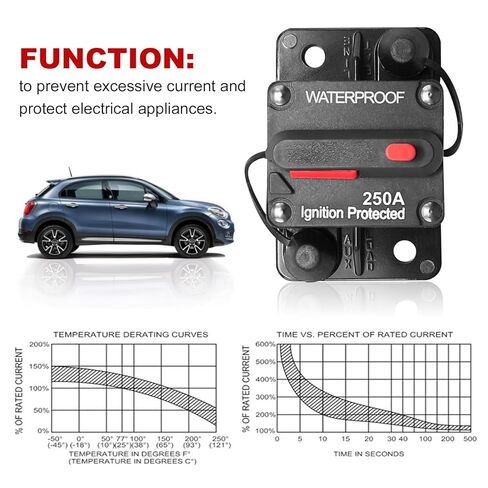

  • [Function]: For a wide range of DC system voltages from 12V to 48V. Designed to protect the system against overcurrents caused by high power consumption, short circuits, wiring errors, equipment failures, or any other high current event. It also protects the power supply from battery rupture or explosion due to short circuits.
  • [Wide Application]: Suitable for use in car audio/video systems, boats, ships, RV's, yachts, batteries, trailers, buses, trucks, ATV's, winches, and more. Can also be used for battery charging and DC PA systems.

Description

Specifications:
Rated current: 250 Amp
Rated voltage: 12-48V DC Maximum
Breaking capacity: 3000A @ 48V DC
Color: As shown
Operating Temperature Rating: -32 °C to 82 °C (-25 °F to 180 °F)
Storage Temperature Rating: -34 °C to 149 °C (-30°F to 300°F )
Material: Thermo-set Polyester
Circuit Breaker Class: Type III - switchable/manual reset - trip free
