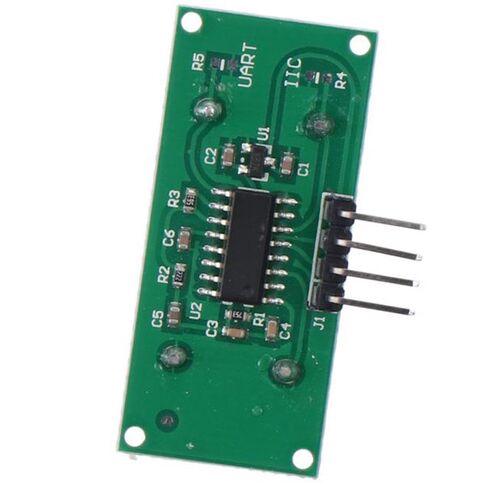

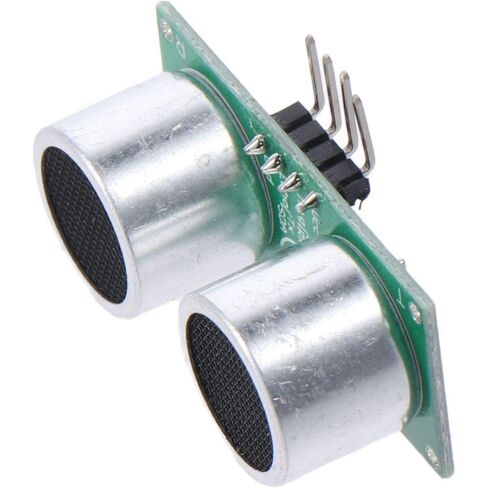

Ultrasonic Ranging Sensor Module 4pcs 2cm-4.5M High Accuracy RCWL-1601 Ultrasonic Sensor Wide Voltage Ranging Sensor Module Compatible with HC-SR04

KWD 4
Brand
AllGIFT
Category
Sensors
Weight
29 g
– 1 +

Special Features

  • The RCWL-1601 is an open ultrasonic ranging module with an ultra-small 2CM blind spot and a maximum range of 4.5M.
  • It operates on a power supply voltage of 3V-5.5V and has an ultra-low working current of 2.2mA.
  • This module offers high accuracy in measuring cotton and irregular objects.
  • With a smaller size of 40 * 18mm, it is compact and easy to integrate into various applications.
  • Ideal for use in a variety of settings, the RCWL-1601 is a reliable and versatile ultrasonic ranging module.

Description

Working voltage: 3V~5.5V
Working current: 2.2mA
Maximum detection distance: 400CM~450CM
Working frequency: 40KHz
Blind spot: 2-3CM
Detection accuracy: ± 2%
Resolution: 1mm
Error: ± 0.5CM
Detection angle: ± 15 °~± 20 ° (maximum directional angle)
Measurement cycle time: 50mS
Output interface mode: GPIO
Working temperature: -10 ?~60 ?
Working temperature: -10 ?~90 ?
Package Included:
4Pcs RCWL-1601 Ultrasonic Distance Measuring Module

Note:
1. There is a 2-3% difference according to manual measurement. Please check the size carefully before you buy the item.
2. Please note that a slight color difference should be acceptable due to the light and screen.
