Note:
This product only supports fuel electric injection system motorcycles.
If you encounter any issues, please contact us first to assist you with the problem.

Characteristic:
Easy installation, no need for complex tools, and reliable use.

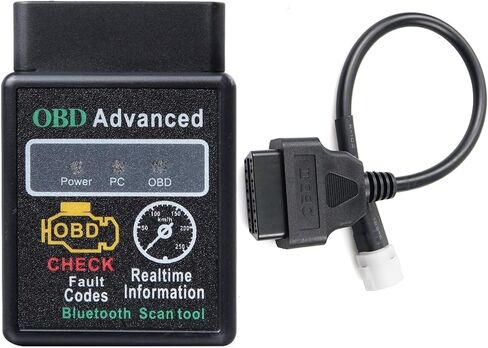

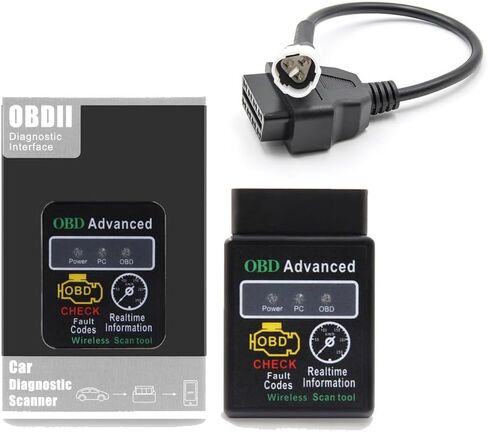

One line three use, three in one pin can be used for Yamaha and for Honda motorcycles
Connecting the OBD-2 fault code scanner helps diagnose fault codes.
Stable characteristics, professional performance, and high reliability.
Build according to standard specifications and strictly adhere to factory quality control.

Supported Protocols:
SAE J1850 PWM (41.6Kbaud)
SAE J1850 VPW (10.4Kbaud)
ISO9141-2 (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (fast init, 10.4 Kbaud)
ISO15765-4 CAN (11bit ID, 500 Kbaud)
ISO15765-4 CAN (29bit ID, 500 Kbaud)
ISO15765-4 CAN (11bit ID, 250 Kbaud)
ISO15765-4 CAN (29bit ID, 250 Kbaud)

ELM327 Functions:
Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
Clear trouble codes and turn off the MIL ("Check Engine" light)
Display current sensor data.
Engine RPM
Calculated Load Value
Coolant Temperature
Fuel System Status
Vehicle Speed
Short Term Fuel Trim
Long Term Fuel Trim
Intake Manifold Pressure
Timing Advance
Intake Air Temperature
Air Flow Rate
Absolute Throttle Position
Oxygen sensor voltages / associated short term fuel trims
Fuel System status
Fuel Pressure

Compatible Systems:
Software Support Platform: Windows XP, 7, 8, Android, Symbian .
Compatible Software:
Window : ScanMaster-ELM, ScanTool.net, PCMSCAN ELM, etc.
Android : Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBD, EOBD, etc.
Symbian : OBDScope
