Specification:

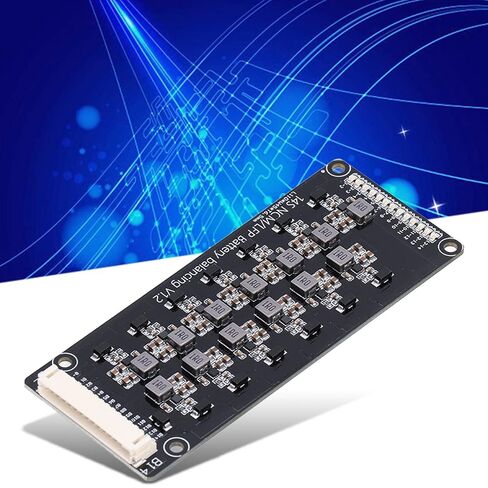

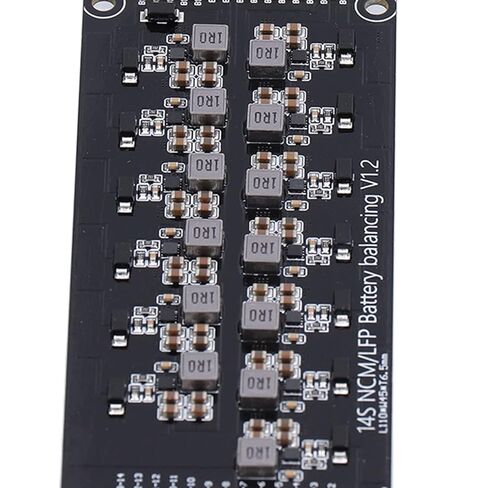

Item Type: Lithium Battery Active Equalizer
Material: PCB, Copper
Purpose: Inductive Energy Transfer Balance Board, High Current 1.2A Energy Transfer Battery Voltage Balancer, Significantly Balance Battery Voltage, Improve the Overall Efficiency of Battery Pack
Working Voltage: 2.0V-4.5V, Universal for Ternary Lithium Iron Battery, Not Applicable for LTO Lithium Titanate Battery
Balance Current:
The adjacent voltage difference is above 0.1V (Current is about 0.5-0.7A);
The adjacent voltage difference is more than 0.2V (Reaching an equilibrium current of 1.2A);
The smaller the pressure difference, the smaller the equalizing current
Wiring Wire Length: Approx. 30cm / 11.8in(Pure Copper 22AWG Terminal Wire)

How to Use:
Balance Instructions: 1. When the equalization light is on, the equalization work is turned on,2. The equalization light goes out and the equalization circuit sleeps,3. The equalization light flashes, the string is dropped, or the circuit is faulty.Wiring Definition: B‑, the total negative pole of the battery pack (the negative pole of the battery)B1, the positive pole of the batteryB2, the positive terminal of the second batteryB3...and so on

Package List:
1 x Module
1 x Connection Wire

Note:
This board is based on the working principle of adjacent equalization and cannot be used as a maintenance tool. To connect the battery, must be used with lithium battery protection. The pressure difference generated by charging and discharging triggers the work of the equalization board to achieve energy transfer balance.Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
