Features:
1) Industrial LCD displays, set by buttons, easy to use, has reset function.
2) High-performance microcontrollers, industrial-grade reliability, high process stability, low power, reverse power protection function, avoiding surge current shock.
3) Four relays, each group of relays has common and normally opened, normally closed contacts, 4 sets of conversion;
4) 99 groups time, each timer range: 0.1 seconds ~ 9999 minutes adjustable, the total number of Loops is adjustable from 0 to 9999 ( “0” means run loops all the time ) ;
5) Each step can be set to cyclic jump to run forward 0-999 times, 20 layer nesting loops support (figure 2);
6) The external input high level and low level signals, achieve trigger function, wait input to run, jump to another step ,stop running functions;
7) User can set the password, to prevent others to change the setting parameters;
8) Shell size 115*90*40mm. All settings can be saved.

Parameters
Timing Range : 0.1seconds ~ 9999 minutes can be set, cycles 0 ~ 9999 times
Power Supply: DC6~40V
Working current:
When the backlight is off, the standby current is 9mA / 12V.
When the 4-channel relay works, the current is 170mA / 12V.
Relay parameters:
Four set of conversion (normally opened and normally closed)
Contact load: 10A/277V AC or 10A/30V DC
Contact resistance: ≤ 100mΩ (1A 6VDC)
Mechanical durability: 10 millions
Electricity durability: > 100,000 (10A-250VAC)
Operating Temperature: -40 ~ 85℃

Package Included:

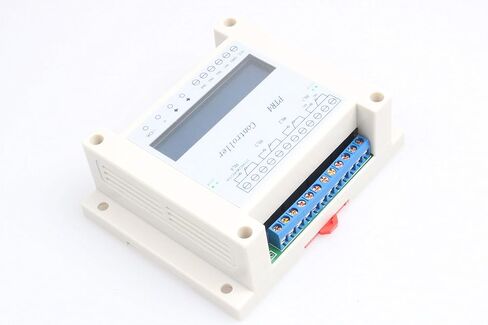

NOYITO 4-Channel Programmable Time Relay
