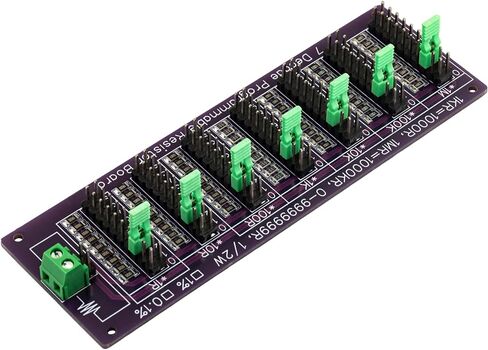

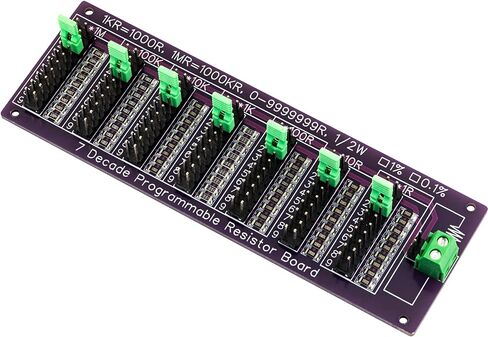

2pcs 0R - 9999999R 7 Decade Programmable Resistor Board Step 1R 1% 1/2 Watt 1206 with 100ohm 100R Adjustable Resistor, 2 Types Output

With 7 pcs jumper caps programmable resistance from 0 to 9,999,999 ohm, 1 ohm per step.
Resistance Tolerance: +/-1%. Rated Power: 1/2 Watt.
Max. Working Voltage: 200V.

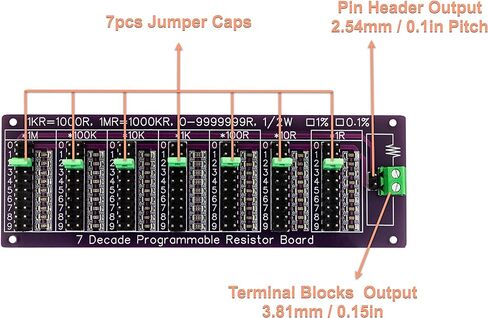

2 Types Output: 3.81mm / 0.15" Terminal Blocks and 2.54mm / 0.1" Male Pin Header.
With an additional 100 ohm resistor can compensate the resistance error and adjust the resistance more accurately.
This is a good low-cost alternative to the "resistance replacement box". It can flexibly and quickly set the resistance range from 0R to 9999999R and step precision 1R. Widely used in educational experiments, electronic engineering design or test fine-tuning.

Package Content: 2pcs x 7 Decade Programmable Resistor Board (with additional 100ohm adjustable resistor), Green Jumper Caps x 20pcs.
