Waterproof,Heat resistance,pressure resistance,cold resistance.
Easy to install.
Frequency: F=4.8 * Q (L / Min) error:2% , current can not exceed 10mA, 450 output pulses/liters, F=onstant * units of flow (L / min) * time (seconds).
Flow range:1-60L/min
Maximum current:15 mA(DC 5V)
Working voltage range:DC 5-18 V
Load capacity:about 10 mA(DC 5V)
Operating Temp:0-80℃,Operating humidity:35%-90%RH
Allow compression:Water pressure 1.75 Mpa below
Insulation resistance:>100M OHM
Storage Temperature:-25-80℃
Storage humidity:25%-95%RH

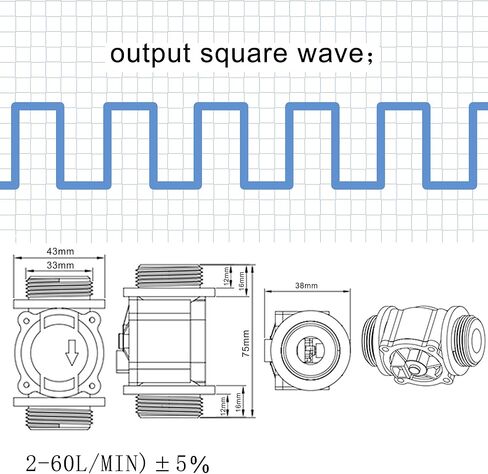

Output Waveform:Square Wave,output pulse singal.
ROHS Compliant.

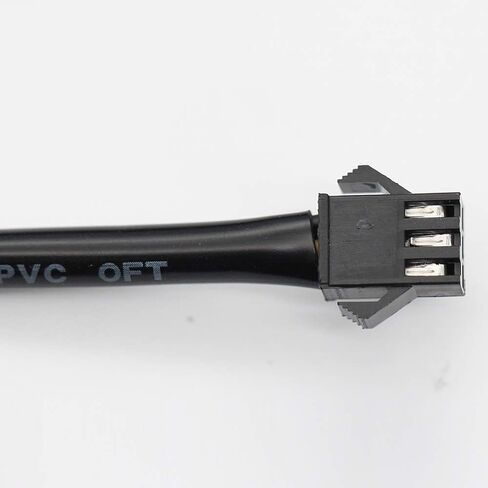

Cable length:15cm.

Packaging include

G1" Flowmeter x 1
