Nominal Coil Voltage: 24 VDC

Terminal style: Quick terminal
Contact from:1C(SPDT)

Contact material: AgSnO alloy
Resistive load：30A 240VAC
Max. switching current: 30A

Max. switching voltage: 277VAC
Max. switching capacity:7200VA

Operate time : 20 ms Max.

Release time : 5 ms Max.
Operating ambient temperature:-55°C+85°C (no freezing)

Weight: Approx.38 g

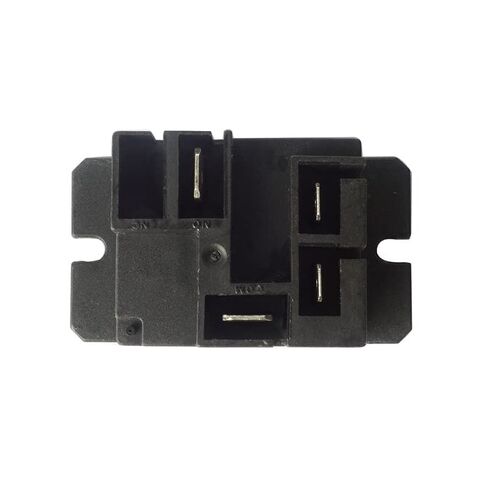

Package Content: 1 x 832AW-1C-F-C1 24VDC

Attention:

Do not use the relay exceeding the coil rating, contact rating and life expectancy, or this may cause the risk of overheating.
