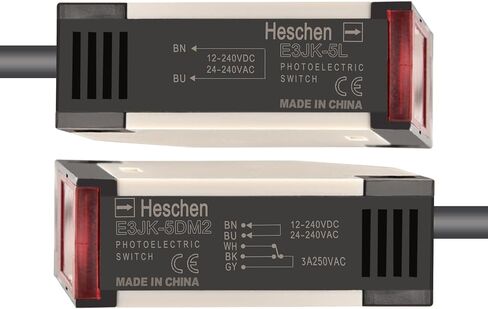

Characteristic parameters:
Respnose time: 30ms
Connectin delay:1.5ms
Supply voltage:DC type: DC12-240V/AC24-240V 50/60Hz
Light source: Infrared light 660nm
Power current: 3V below
Control output: 2A below(contact service life: 0.1 million times)
Impulsion and vibration are allowed: B
Insulation impedance: 50Mohm above between charging part and housing
Withstand voltage: AC1000V 50/60Hz 1min between charging part and housing
Temperature Influence : Temperature range-30～＋65℃,at + 23℃,± 15% detection distance; Temperature range-25～＋60℃, at +23℃, ±10% detection distance
Voltage influence: Inside ±15% rated supply voltage range, at rated supply voltage value, inside ±10% detection distance.
Protection structure: IP65(IEC specification)
Material: Housing: Nickel plated brass(ABS) Detection surface(lens): PMMA
Heschen M30 Capacitive Proximity Sensor Switch Shield Type LJC30A3-10-Z/BX Detection 1-10mm 10-30VDC 200mA NPN Normally Open(NO) 3 Wires
KWD 5
Heschen M12 Capacitive Proximity Sensor Switch Non-Shield Type LJC12A3-5-Z/BX Detector 1-5mm 10-30VDC 200mA NPN Normally Open(NO) 3 Wires
KWD 5.500
Heschen M8 Inductive Proximity Sensor Switch Non-Shield Type LJ8A3-2-Z/BY Detector 2mm 10-30VDC 200mA PNP Normally Open(NO) 3 Wire
KWD 3.500
Heschen M5 Inductive Proximity Sensor Switch Non-Shield Type LJ5A3-1.5-Z/AY Detector 1.5mm 10-30VDC 150mA PNP Normally Closed(NC) 3 Wire
KWD 4.500
