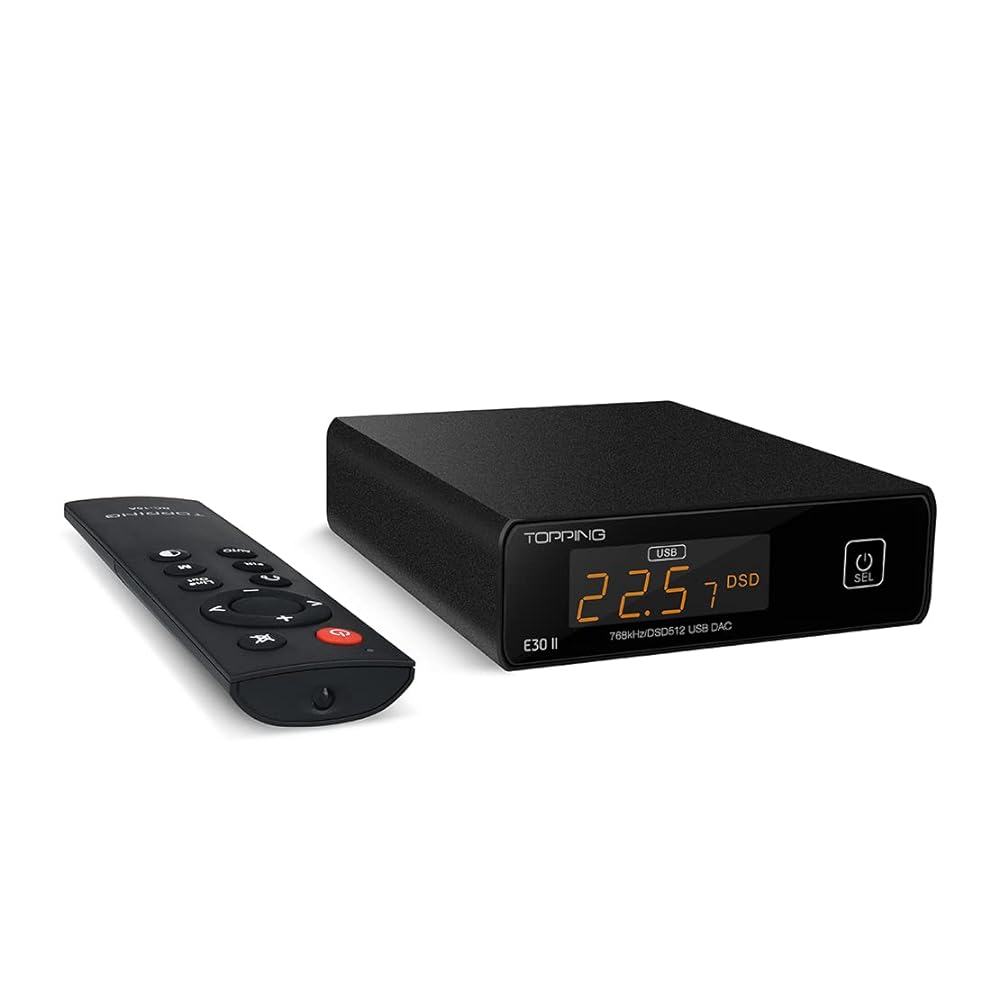

TOPPING E30 II DAC 2* AK4493 Decoding Chips USB/OPT/COAX Converter DSD512 32bit/768kHz Digital Decoder

Product highlights
E30 II is a high-performance DAC with USB, coaxial and optical input.
E30 II is designed for full digital volume control and is equipped with LED screen.
It can be used not only as a DAC, but also as a preamplifier.

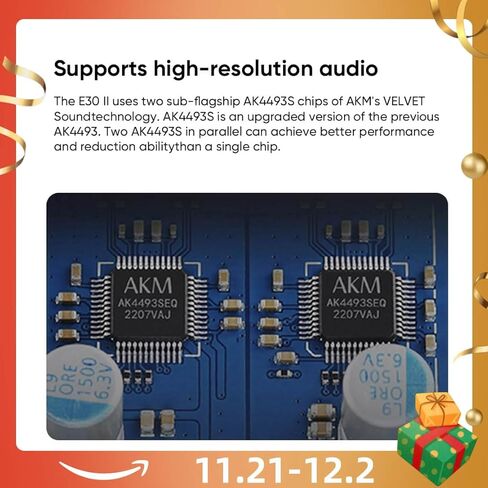

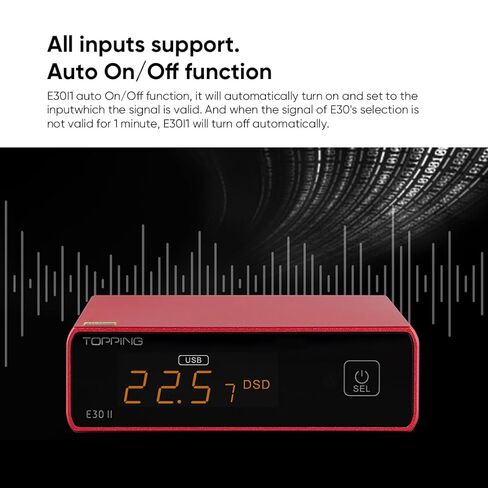

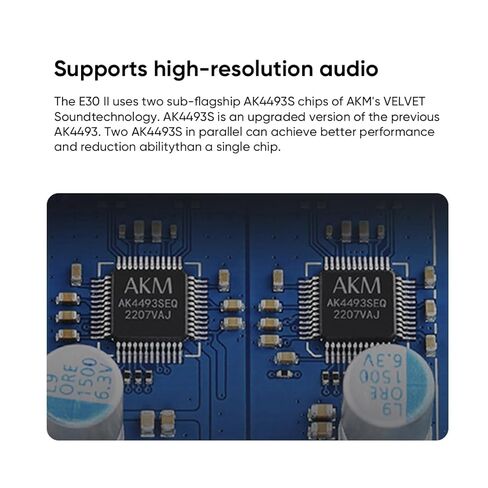

E30 II use 2 x AKM AK44993S DAC chips, and 6 digital mode. And it has automatic on/off function.

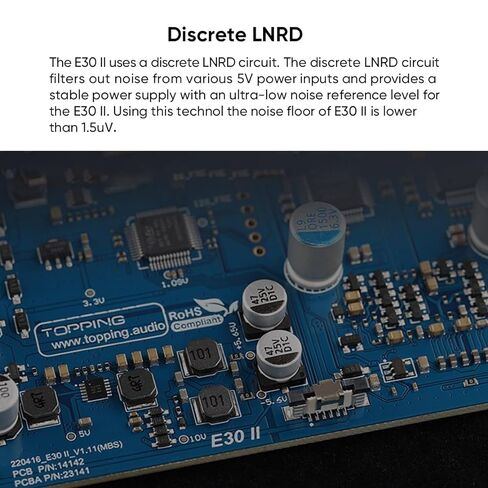

The E30 II uses a DC5V power supply, making it one of the most portable desktop DACs.
TOPPING L30ll and E30ll have fully matched design languages and styles, L30 II suitable for almost all kinds of headphones.

Product Spec:
Color: Black/Silver/Blue/Red
Size: 10x12.5x32cm
Weight: 265g

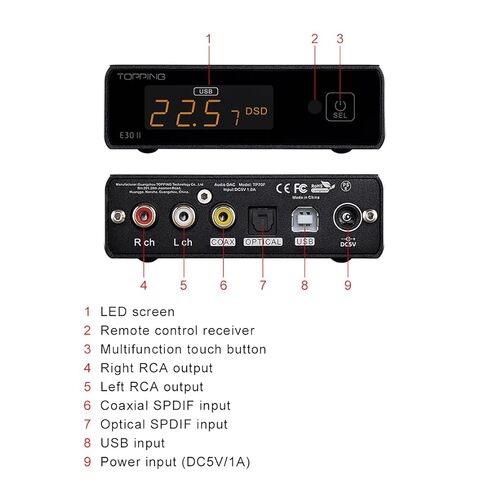

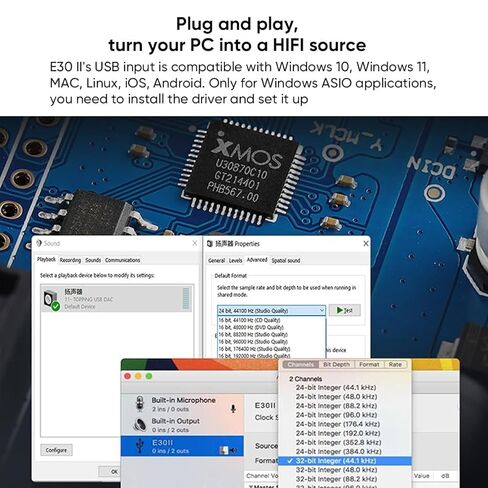

USB IN：
PCM: 44.1kHz-768kHz/16bit-32bit
DSD: DSD64-DSD512(Native), DSD64-DSD256(Dop)

Optical/Coaxial IN：
PCM: 44.1kHz-192kHz/16bit-24bit

E30 II DAC parameters (LineOut/USB In@96kHz)
THD+N @1kHz (A-wt): THD @90kBw (No-wt): SNR @A-wt: 123dB @1kHz
Dynamic range @A-wt: 123dB @1kHz
Frequency Response: 20Hz-20kHz (+0.3dB), 20Hz-40kHz (+0.8dB)
Output Level: 2.1Vrms @0dBFS
Noise @A-wt: Channel Crosstalk @ 1kHz: -132dB
Channel Balance: Output Impedance: 20Ω
Note: The above data is the result of the testing TOPPING laboratory.

Accessories:
1 x E30II
1 x DC cable
1 x USB cable
1 x User manual
1 x Warranty card
1 x Remote control
