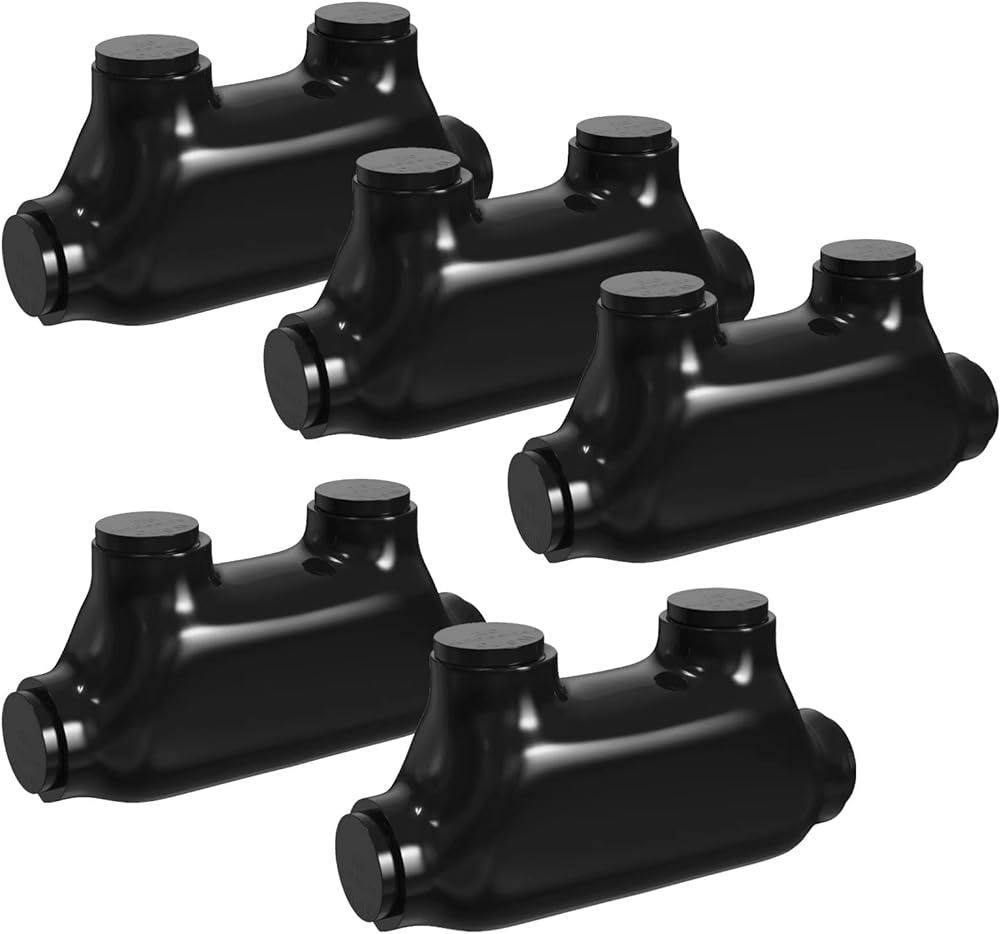

SPLICE CONNECTOR USE AND DESCRIPTION- It's suitable for connecting two wires or cables in-line. Used for splicing cables and can be used to replace tradition split bolt splicing for a fraction of the cost in material, time, and labor. Easy re-entry for changes, inspection, or troubleshooting, the connectors are supplied with removable access plugs over the hex screws. One wire per terminal.
SIZE AND SPECIFICATIONS - The In-Line Splice Connectors Are Specially Designed For 2/0 AWG, 1-1/0 AWG, 2 AWG, 4 AWG, 6 AWG. The screws are Allen Hex size 3/16". Outside dimensions are 3.37 Inch Length x 1.04 Inch Width x 1.7 Inch Height.
Dual Rated - The 600-volt cable conductor is 6061-T6 Aluminum CU9AL dual rated for use with copper and aluminum wires. Rated for Use with 194°F(90°C) Cables.
INSULATION MATERIAL - Our insulated multi cable connector is constructed from sturdy high dielectric rubber, contributing to its durability and long lasting usage; Furthermore, its black vinyl coating adds an extra layer of protection, ensuring excellent insulation properties.
EASY OF USE - dual-entry insulated in-line splice connectors dual-entry insulated in-line splice connectors, and pre-filled with oxide inhibitor, simplify the installation process, saving time and reducing the need for additional sealing materials. combined with their protective qualities, makes them an excellent choice for professionals and DIYers alike.
