DC 6V-30V 12V 24V Max 8A Motor Speed Controller PWM With Digital Display Switch
Description:
CCM5D DC Motor Speed Regulator controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM).

Large 0.56 inch 3-digit LED display numbers allow viewing under the most adverse conditions.
Adjustable speed range is 0%-100%. Suitable for the DC motor (or DC load) within 5A, Peak current 8A.

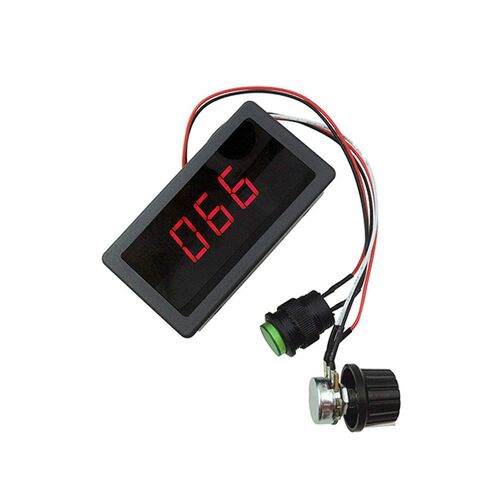

The display range of 3-digit LED display is ”000”-“100”. (For example, displayed ”066” as the picture 1, it means that the PWM output duty cycle is 66%.)

Incorporate a push key. Push closed, and then push open.

100% new and high quality
Input Supply Voltage:DC 6V-30V
PWM Frequency:16kHz
The maximum continuous output current :5A(Peak current 8A)
The maximum output power: 240W

The LED display the duty ratio 0-100%

Duty Cycle adjustable: 0%-100%
Size:3.1*1.6*0.9 inches

Color: As picture shows
Weight:55g
Quantity:1Pcs
Note:

Light shooting and different displays may causethe color of the item in the picture a little different from the real thing.The measurement allowed error is+/-1-3cm.

We highly appreciate all custome rsopinions to improvethe selling, also if anything you unsatisfied, please contact us for probable best solution. Thank you!

Package Included:
1Pcs DC 6V-30V 12V 24V Max 8A Motor Speed Controller PWM With Digital Display Switch (If there are any problems with the product, please send us pictures.Tell us more details about this problem.)
